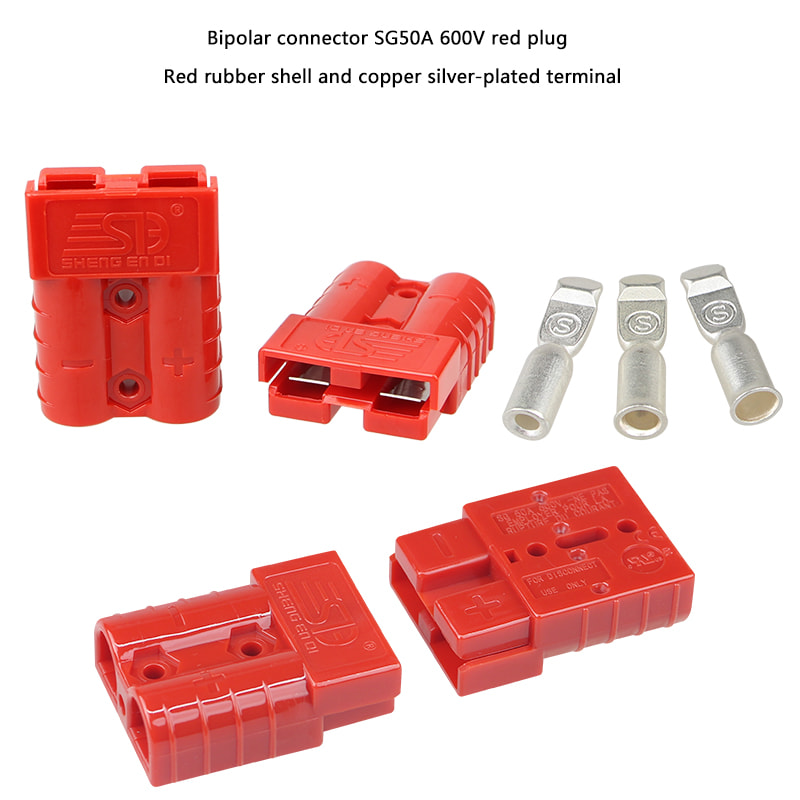

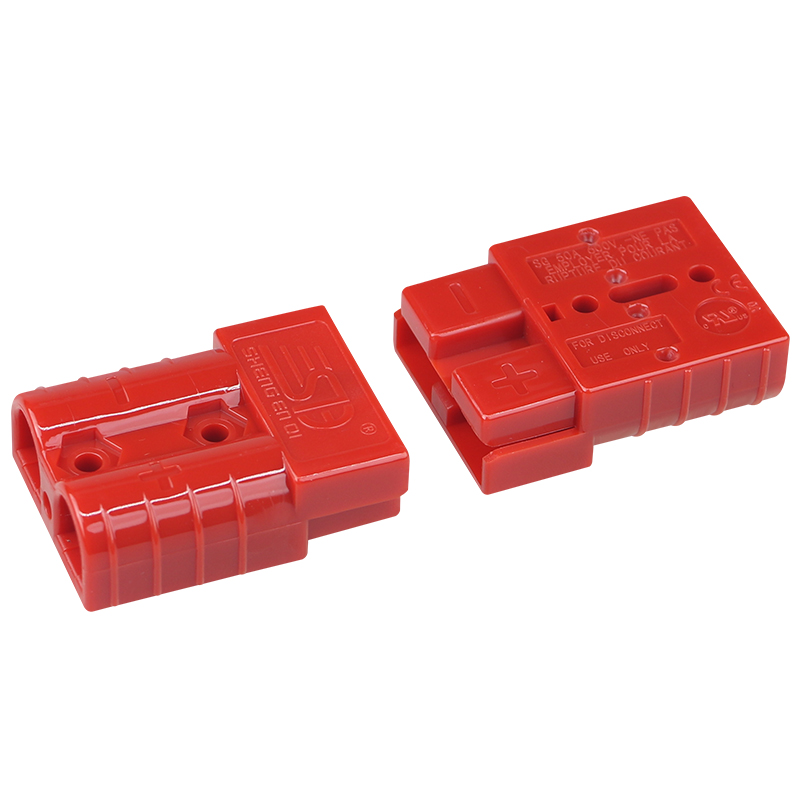

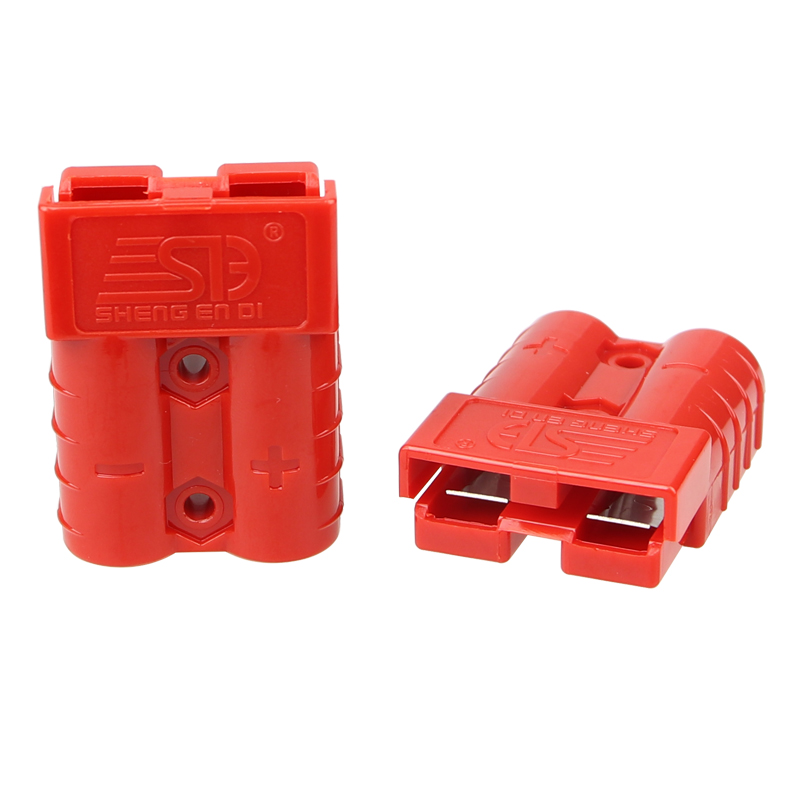

Rated current 50A, rated voltage 600V, bipolar connector red rubber shell, mechanical parts to prevent stupid design, the same color to insert regardless of male and female
Item No :
SGOrder(MOQ) :
1Payment :
TTProduct Origin :
DongguanColor :
redShipping Port :
ShenzhenLead Time :

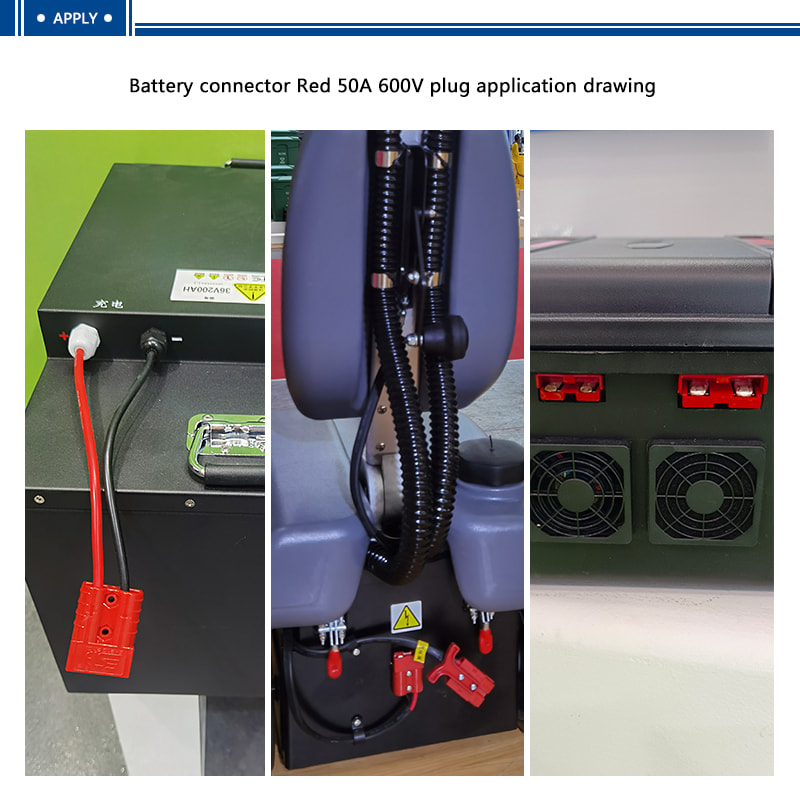

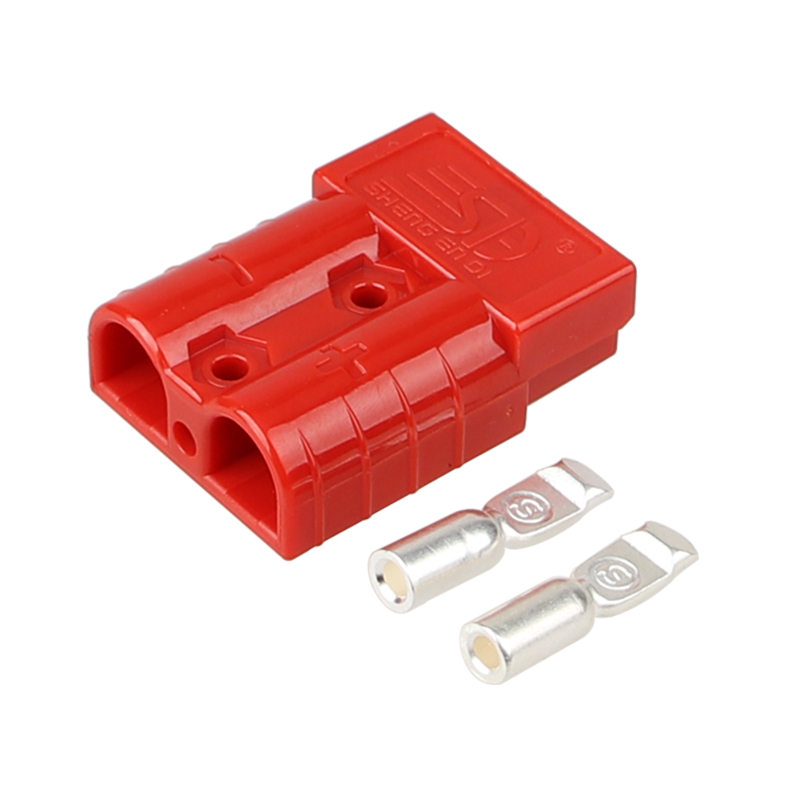

Delivery time according to customer requirementsBattery connector Red 50A 600V electric forklift quick charging plug

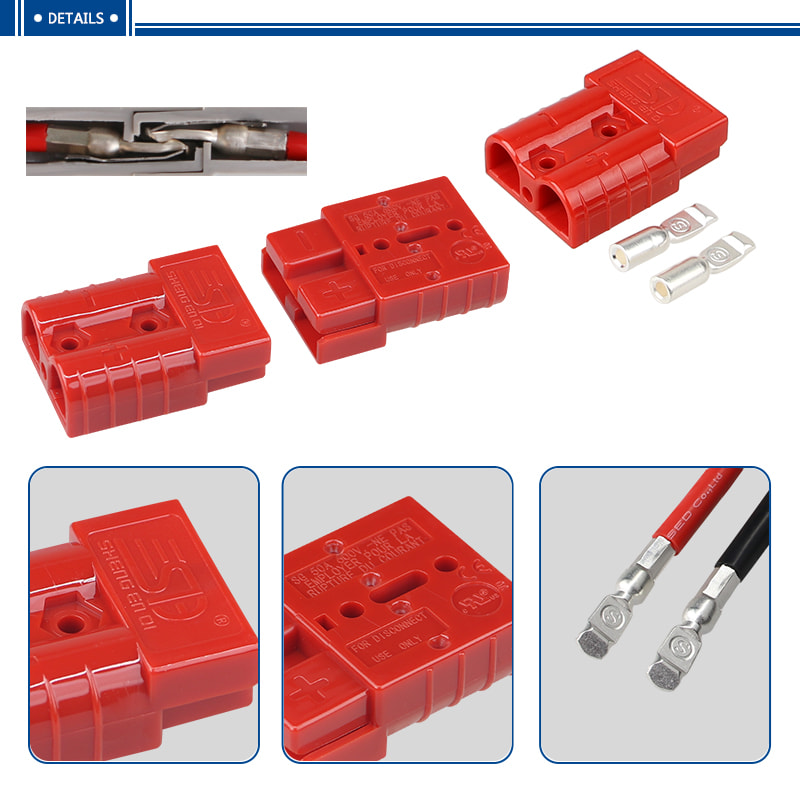

Mechanical key to prevent stupid design: the same color to insert regardless of male and female,Prevents accidental cross mating of circuits;
Self Securing Design:Stainless steel springs create a robust force between the contacts thatholds the connector in the mated position;
PC Housing - The shell of the battery quick connector made of PC (polycarbonate), which provides superior resistance to wear, corrosion, water, and heat.Flame retardant V0 grade, impact resistance, corrosion resistance, gasoline resistance, high-quality raw material injection molding

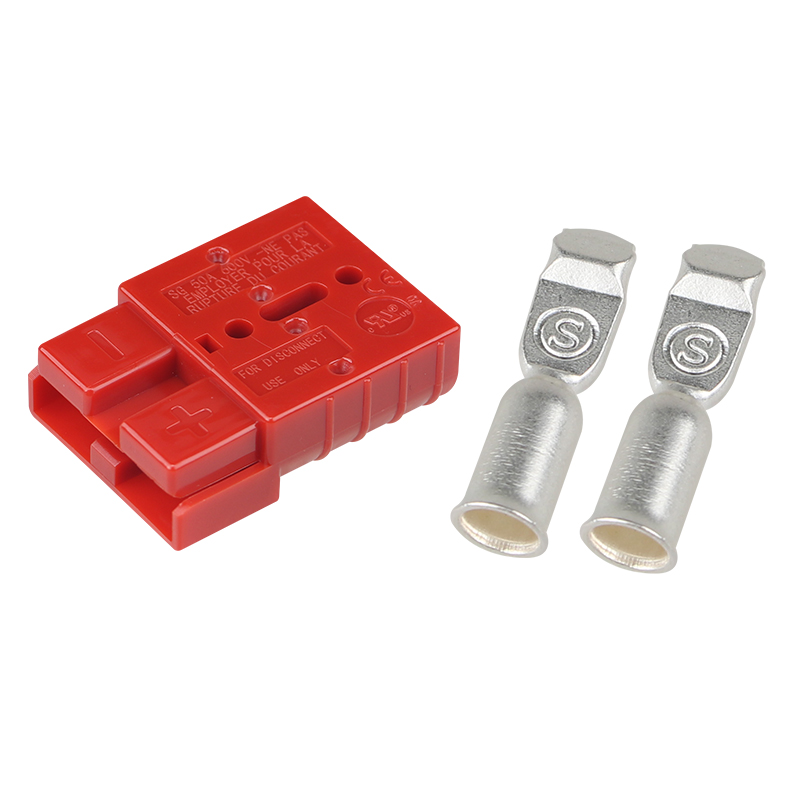

Metal conductor: copper plated silver terminal, round hole connection design, connection aperture -6, 8, 10, 12, 14, 16AWG,Just put the cable in terminal,solder or crimp them, then slide them into the back of plug and lock in place

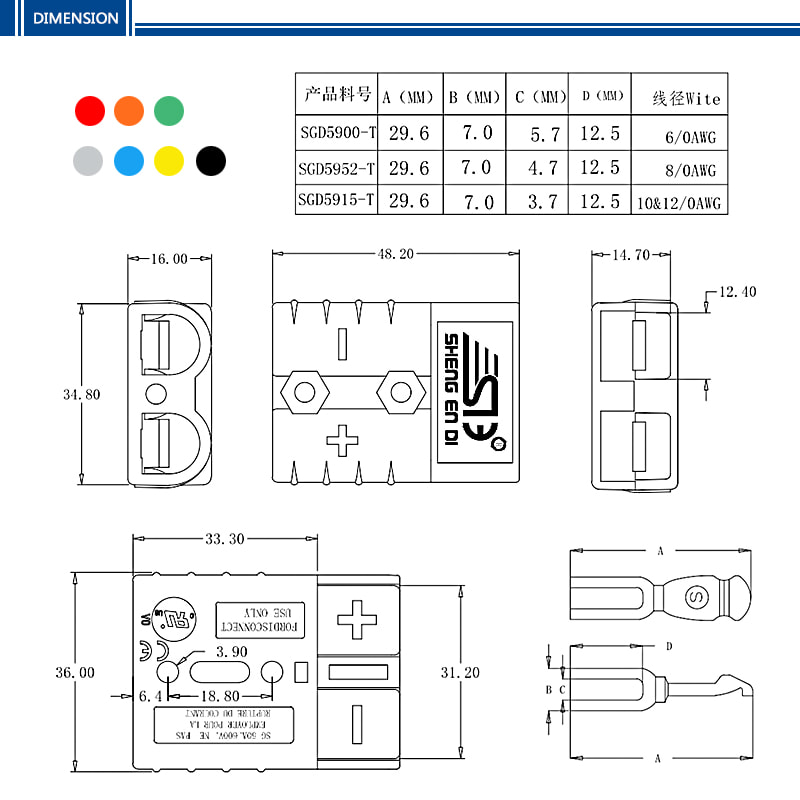

Parameter:
| Product Name | 50A 600V Red Battery connector |
| Rated current | 50A |
| Rated voltage | AC/DC 600V (Max) |
| Shell color | red |
| Shell material | PC UL94V-0,which provides superior resistance to wear, corrosion, water, and heat. |
| Contact terminal material | Copper plated with silver,99.99% pure copper and silver plated |
| Terminal pins | Choosing the corresponding terminal pins according to the size of the wire |
| Wiring specification | 6,8,10,12,14,16AWG |
| Environment temperature | -20℃~105℃ |
Battery connector Red 50A 600V detailed introduction ：
GuangDong SED CO., LTD.Is a professional OEM/ODM connector, connector accessories, plug harness manufacturer, focusing on power connector/plug R & D and production, own brand SED. It is located at No. 42 Shaxiang Road, Chaolang Industrial Zone, Chashan Town, Dongguan City, China. AC/DC power connectors (plugs) available from 5A to 350A, connectors, accessories, and a one-stop solution for wiring harness assembly. Our 24-hour online technical support and after-sales service, all products comply with UL/CUL, CE, ROSH, REACH and other standards. The company has R & D design department, mold development department, injection workshop, hardware workshop, wire harness workshop, assembly workshop, the annual output of about 100,000 pieces, can be customized. It also supports small orders and free sampling. Welcome to inquire.
FQA：
1.Are you the manufacturer?
Yes, we are a manufacturer, brand SED, with the strength of connector and harness one-stop service.
2.What’s your MOQ?
There is no limit on the quantity of purchase, and the order is shipped
3.Is customization supported?
Support LOGO customization, support color customization, support connector open mold injection molding customization, support OEM wiring harness customization.
4.What is the delivery time?
Do not specify the time, order delivery, according to the customer's specified time delivery
5.How to place an order or know more about the products?
Contact sales staff online or by email
The same color is inserted regardless of male and female, mechanical parts are designed to prevent stupidity, rated current 50A, rated voltage 600V High Conductivity - the copper terminal pins are silver plated to minimize electrical resistance while offering exceptional durability and stability. Notice: Plugs are neither male nor female, they are genderless.For pairing, just buy any two connectors of the same color andamperage.
