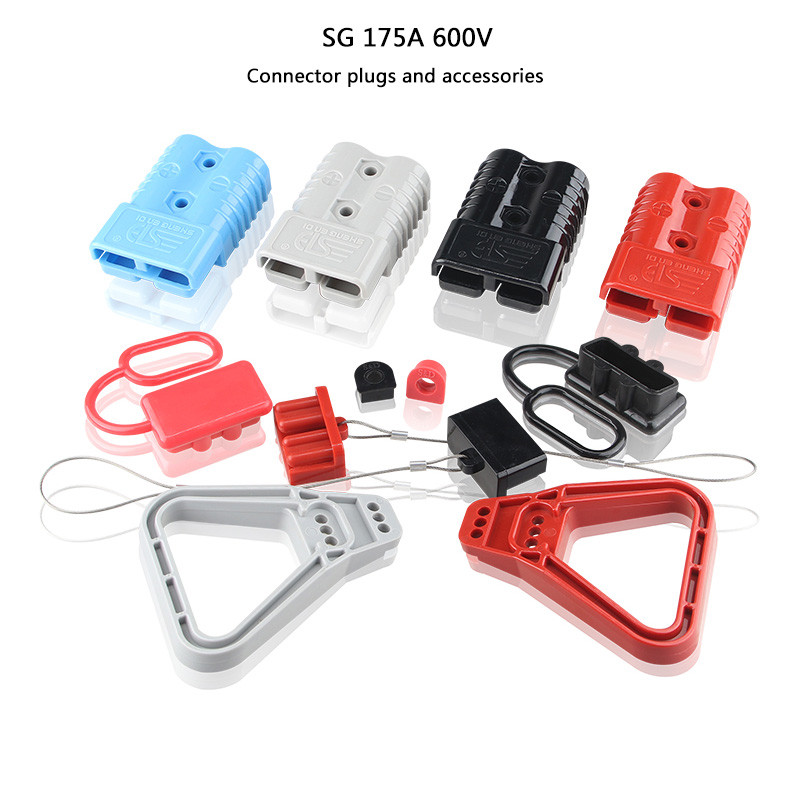

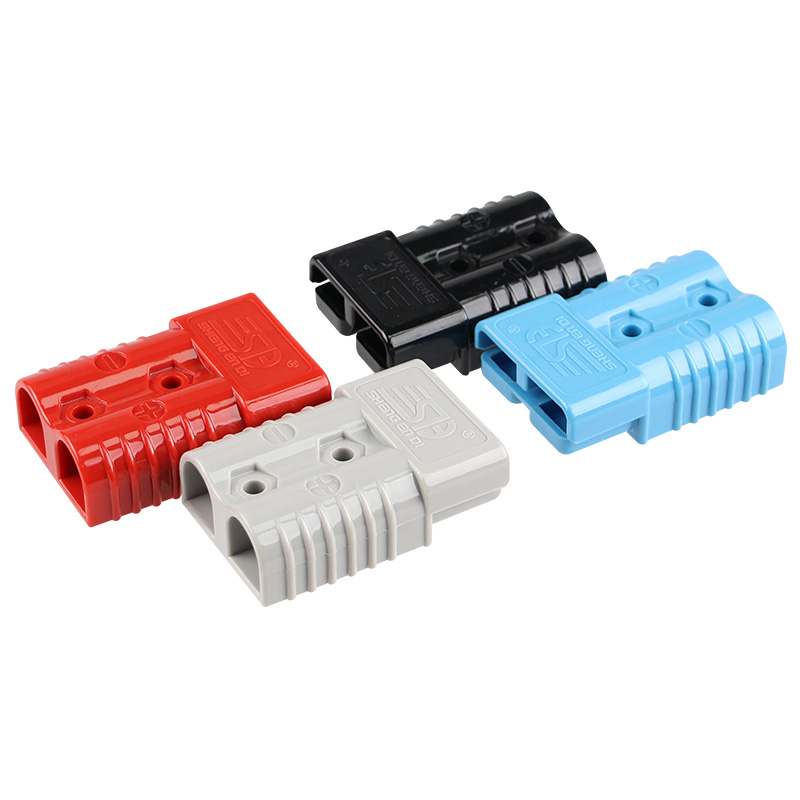

175A 600V forklift battery connector plug

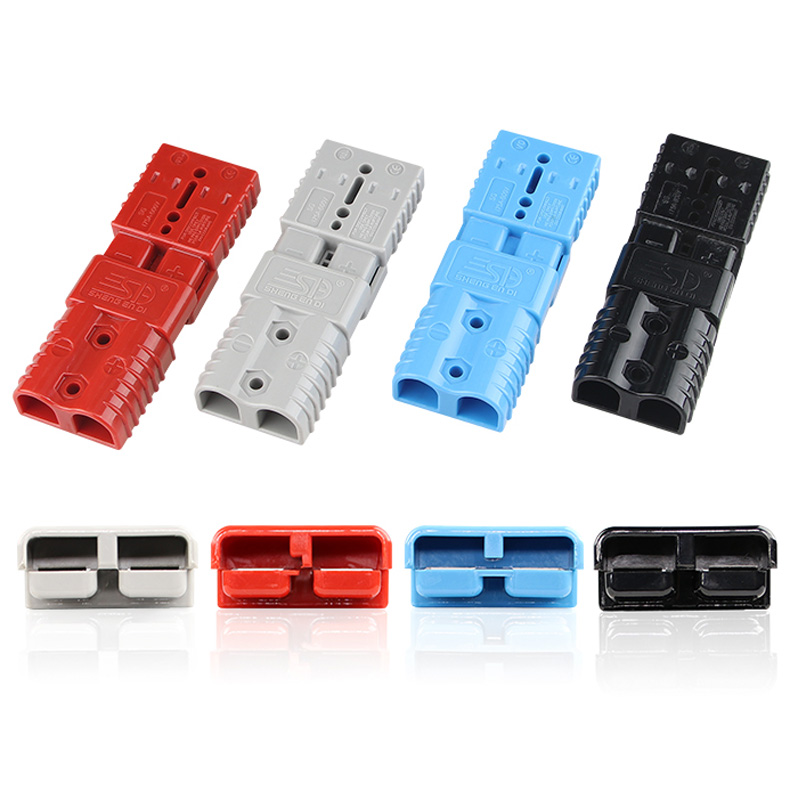

- Foolproof Design: The gender-neutral and color-matching insertion mechanism ensures hassle-free and secure connections.

- Color-Coded Safety: Different colored connectors cannot be interlocked, minimizing the risk of incorrect connections and enhancing overall safety.

175A Heavy-Duty Power Interface Connector

Crafted with Premium PC Injection Molding, the housing of this connector is built to last. It can withstand temperatures ranging from -25°C to 125°C, making it suitable for a wide range of environments.

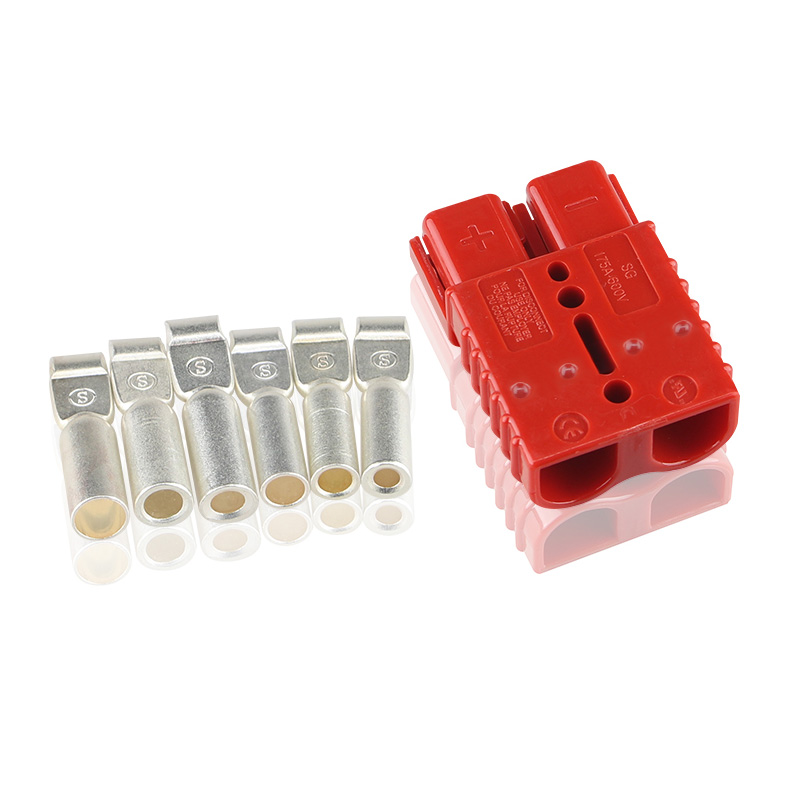

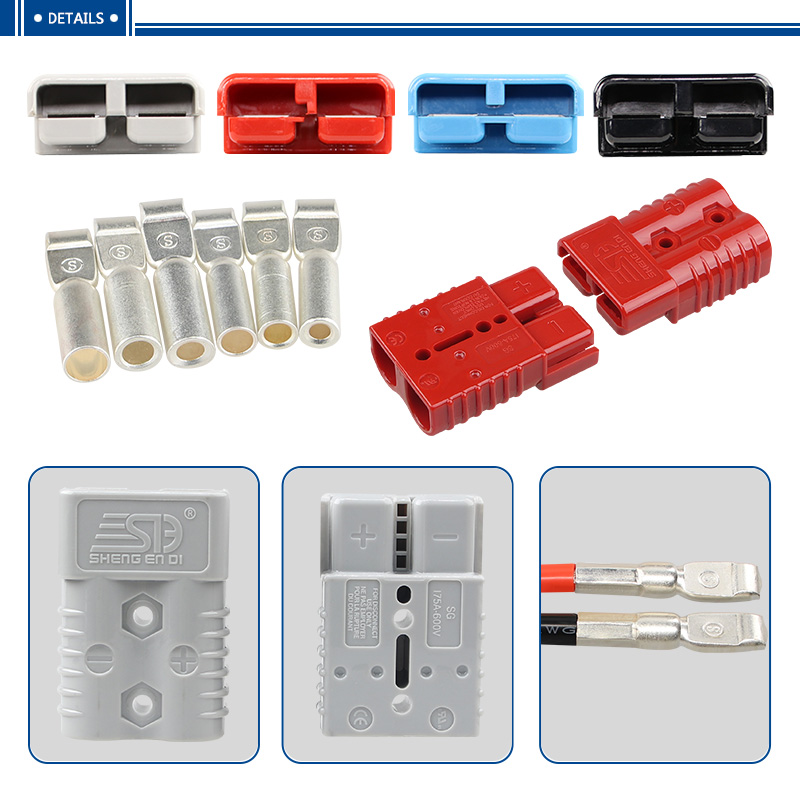

The conductive metal terminal is made from silver-plated copper, ensuring exceptional conductivity. Through a meticulous process of quenching, the connector achieves a balanced level of flexibility and hardness. This design guarantees that the connector remains intact under compression during usage and maintains its stability during the wire insertion process, preventing any risk of cracking or deformation. Trust in the durability, conductivity, and stability of our Power Transmission Connector for all your high-current applications.



Product Name 2-Pin power connector
Rated current 175A
Rated voltage AC/DC 600V (Max)
Material Shell material: PC (polycarbonate),Contact terminal material: 99.99% pure copper and silver plated

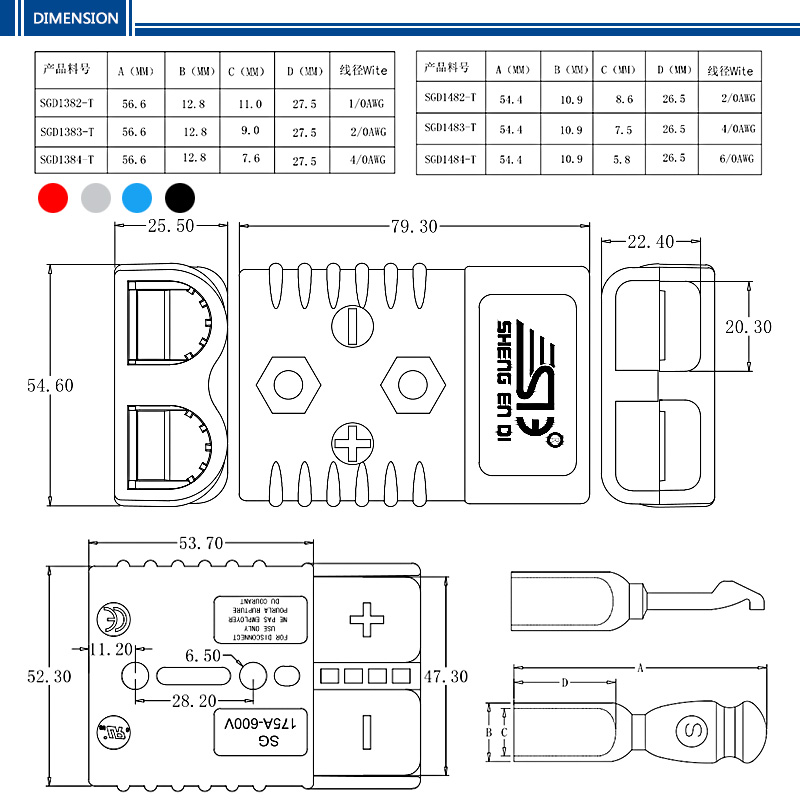

Terminal pins Choosing the corresponding terminal pins according to the size of the wire
Color Accept to customize.welcome to customize logo or with our logo"SED" or without logo

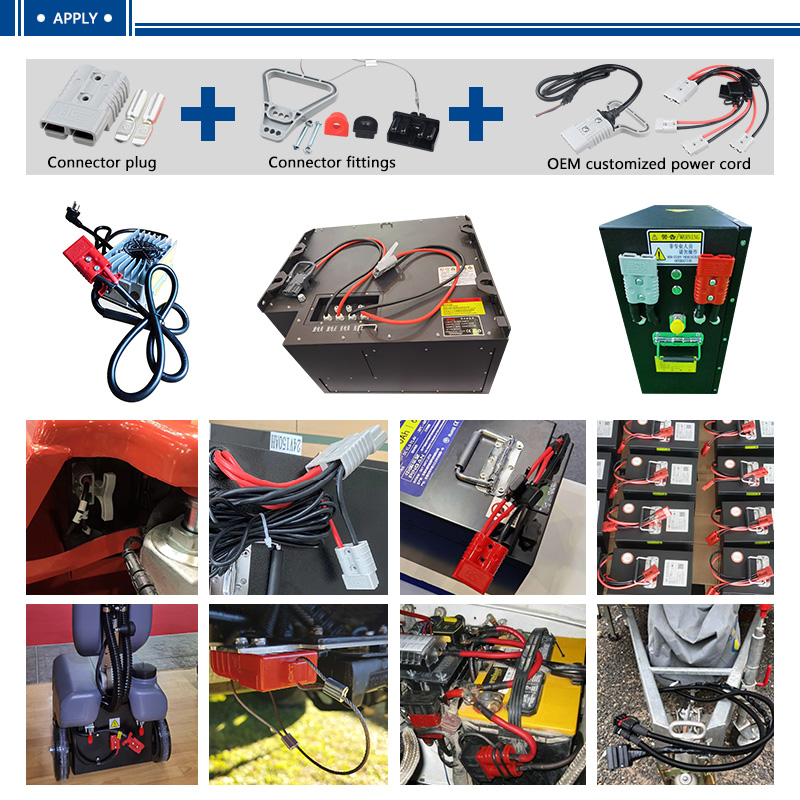

Application Apply for battery,electric vehicle,UPS communication power supply,electric machine,
MOQ NO limited,we have all the model in stock,production capacity: 100000pcs/day
Notice: Plugs are neither male nor female,they are genderless.For pairing,just buy any two connectors of the same color andamperage.



leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
