The same color is inserted regardless of male and female, mechanical parts are designed to prevent stupidity, rated current 50A, rated voltage 600V

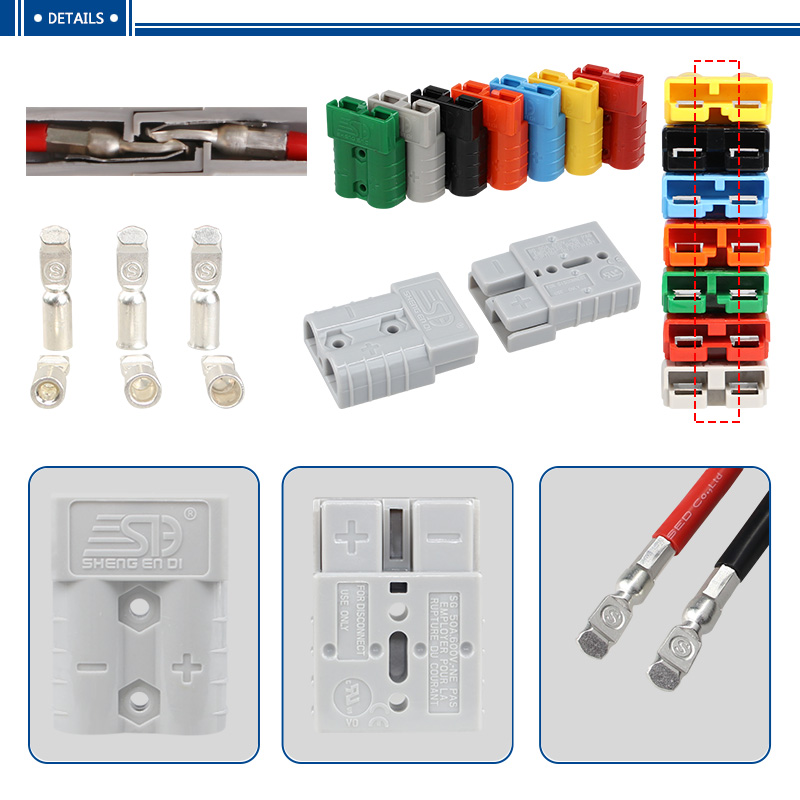

High Conductivity - the copper terminal pins are silver plated to minimize electrical resistance while offering exceptional durability and stability.
Notice: Plugs are neither male nor female, they are genderless.For pairing, just buy any two connectors of the same color andamperage.
Item No :
SGOrder(MOQ) :
1Payment :
TTProduct Origin :
DongguanColor :
Gray/red/blue/green/orange/black/yellowShipping Port :
ShenzhenLead Time :

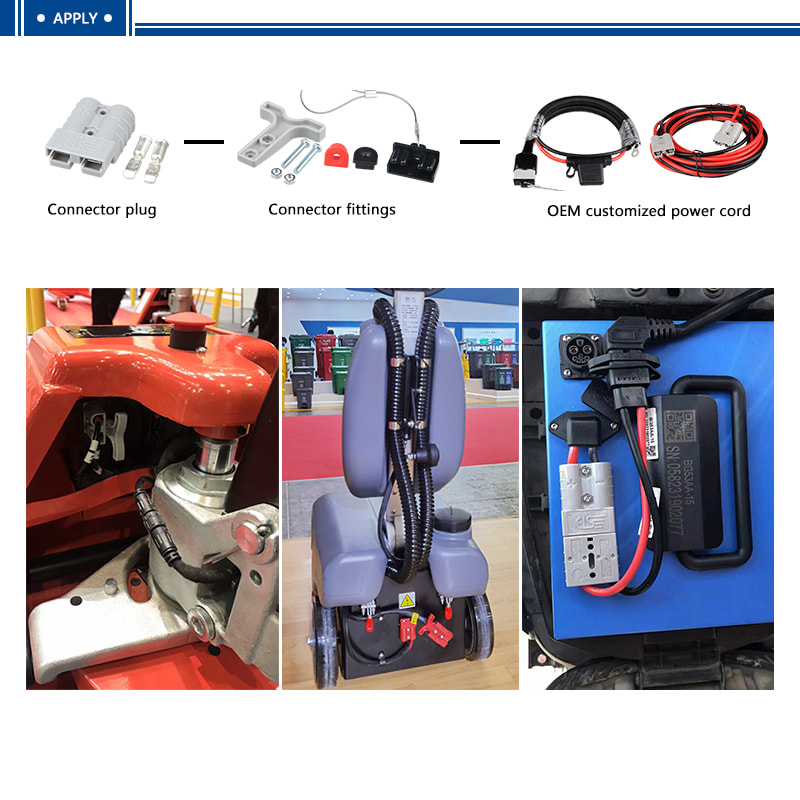

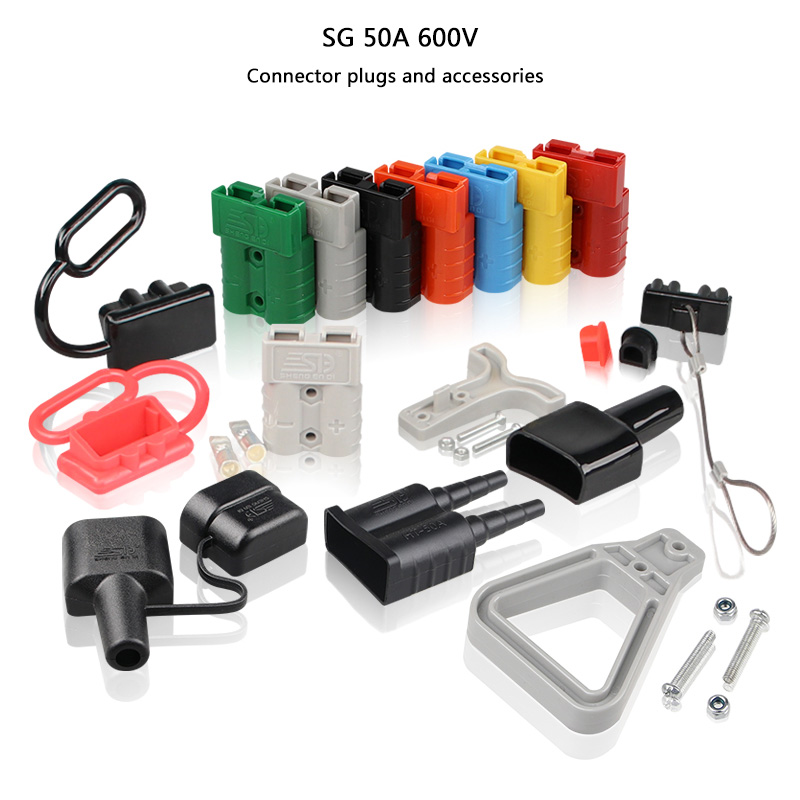

Delivery time according to customer requirementsBattery connector 50A 600V forklift power quick charging plug

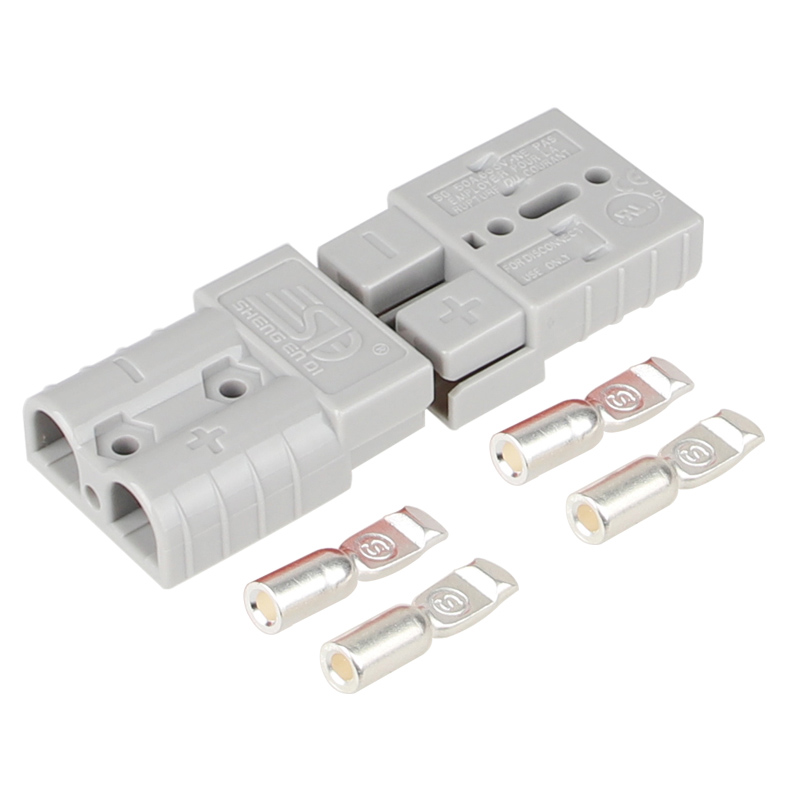

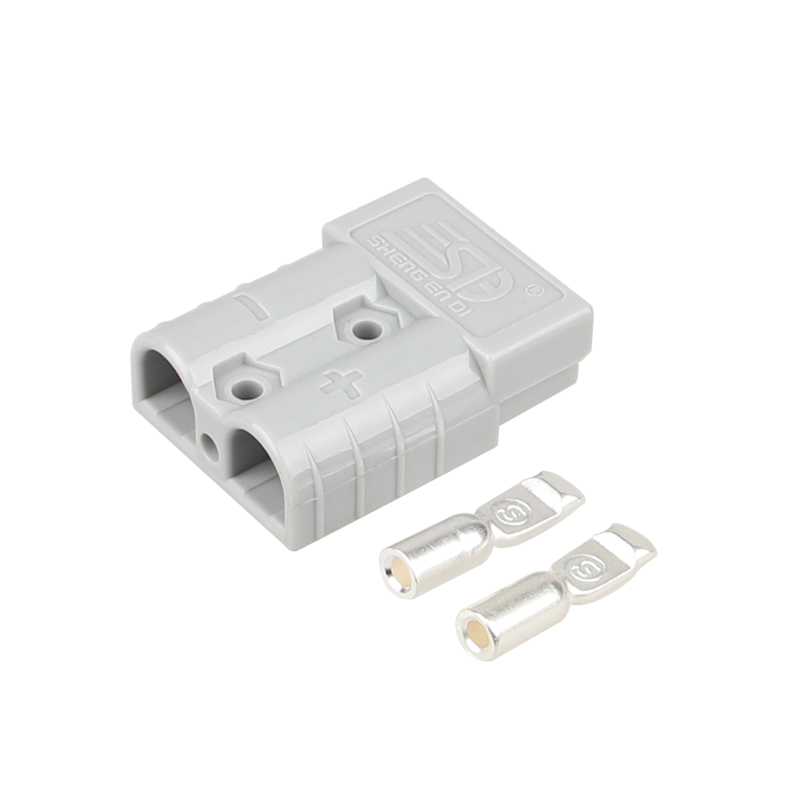

Effortless Setup - Compatible with 6, 8, 10, and 12AWG Cables; Supports up to 600V Voltage; Simply insert the cable into the terminal, solder or crimp the connections, and effortlessly slide them into the plug's rear, locking them securely in position.
Reliable 50A 600V Forklift Power Quick Charge Plug with PC Housing - The housing of this battery quick connector is made of durable PC (Polycarbonate), which has excellent abrasion resistance, corrosion resistance, water resistance and heat resistance . Each connector has an internal stainless steel spring mechanism engineered to securely hold its electrical contacts
Parameter:
| Product Name | Battery connector 50A 600V |
| Rated current | 50A |
| Rated voltage | AC/DC 600V (Max) |

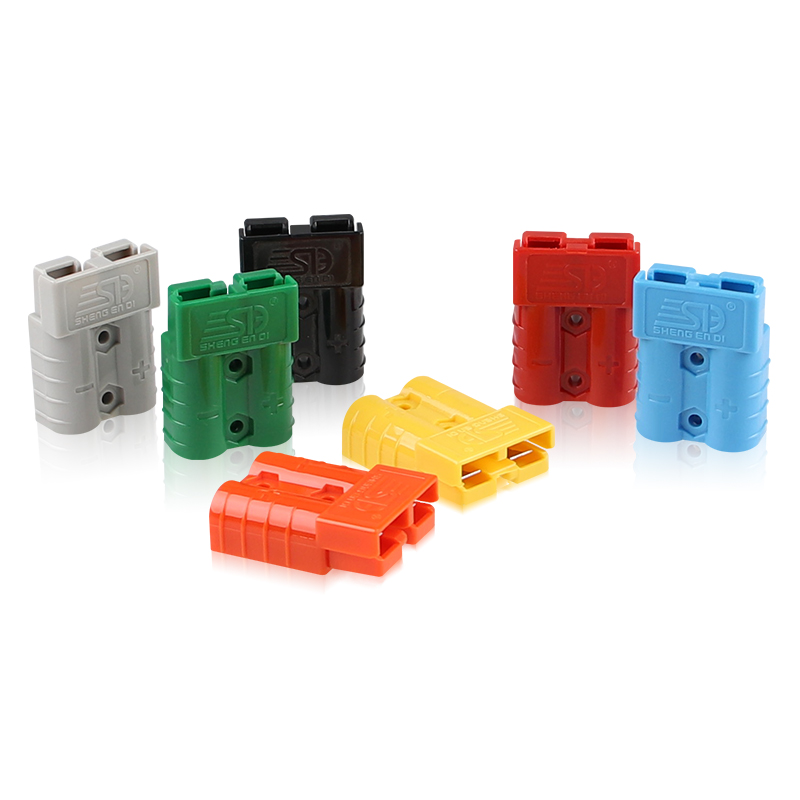

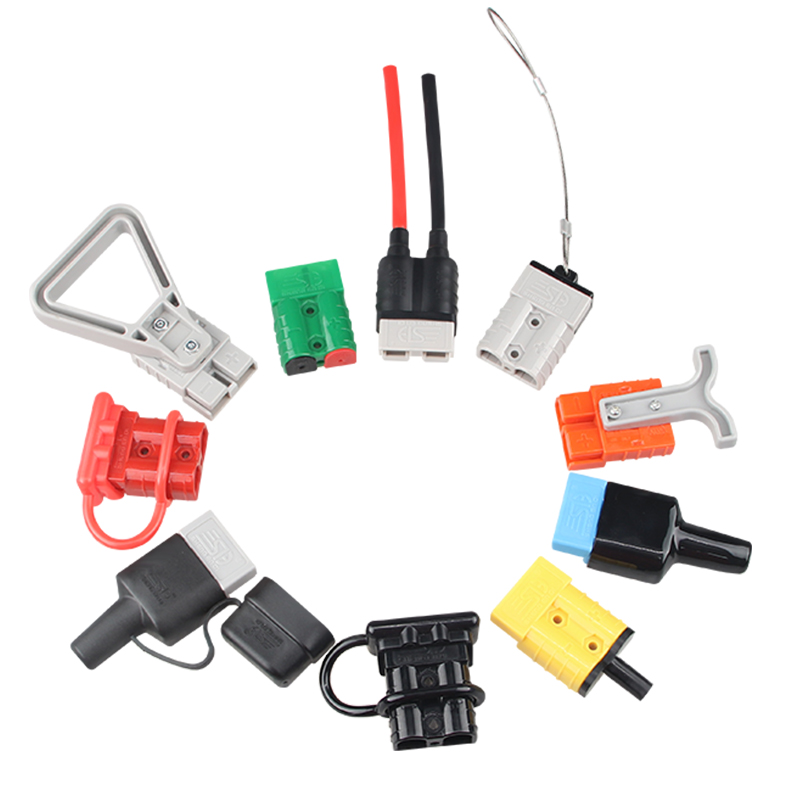

| Color | Gray/red/blue/green/orange/black/yellow |
| Color Marking | The rubber case has an anti misconnection function and is marked with different colors toprevent accidental circuit docking. |
| Flame retardant grade | PC UL94 V-0 |
| Material | Shell material: PC (polycarbonate), Contact terminal material: 99.99% pure copper and silver plated |
| Conductive metal material | silver plated copper,Choosing the corresponding terminal pins according to the size of the wire |
| Environment Temperatures(℃): | -20℃---125℃ |
Notice: Plugs are neither male nor female, they are genderless.For pairing, just buy any two connectors of the same color andamperage.
Why Choose Us?
GuangDong SED CO., LTD. founded in 2013, is located in Chashan Town, Dongguan City. After years focused on the scientific research of various kinds of high-current connectors,Battery connector,fast-charging plugs, sockets and other connection products. It becomes a national high-tech enterprise integrating research and development, production and sales. Professional to provide customers with 5A a 350A high current connector development, design and wiring harness overall solution.

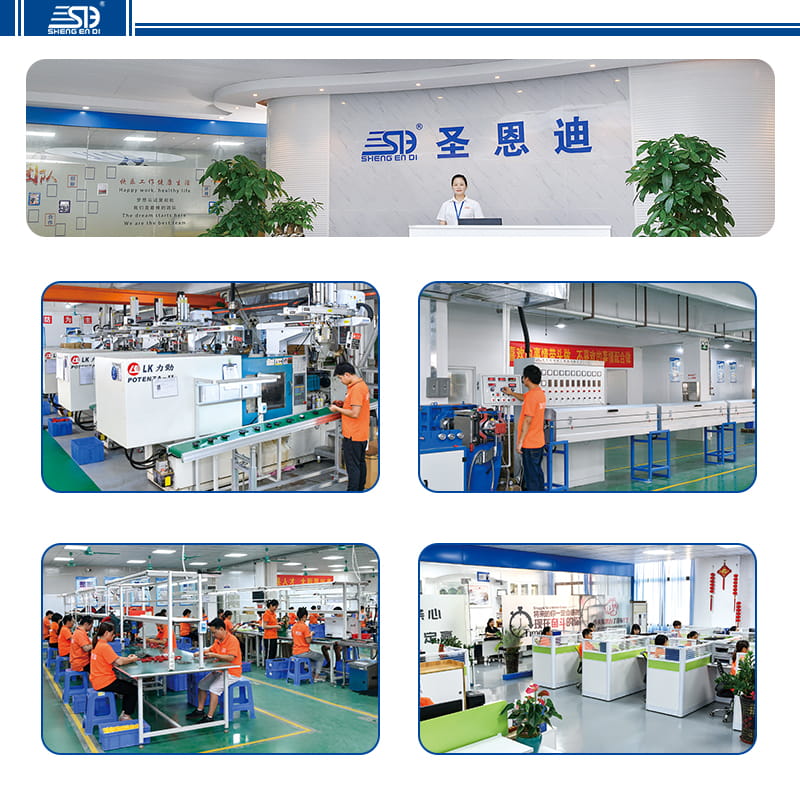

SED has laboratory, testing room and automatic production workshop, passed ISO9001, IATF16949 quality system certification, products passed UL/CUL, CE, ROSH, REACH, a number of product certification, has obtained more than 40 national trademark patents, get a number of new invention patents. The main products are single-pole connector, bipolar connector, multi-pole connector, SIN connector, power connector, connector terminals, battery accessories and so on, the application field covers automobiles, electric vehicles, communication power supplies, medical equipment, energy storage batteries, handling equipment, clean energy and so on
FAQ:
1、SED brand advantage？
Support connector design mold customization, wiring customization, packaging customization, one-stop connector and wire harness overall solution
2、Service advantage？
24-hour online service, support online technical guidance services, engineering and technical personnel to provide solutions, return and exchange services
3、Are you a factory?
Yes, we have a factory located in Dongguan. Welcome to visit us.
4、What is the MOQ?
The sample in stock is 1pcs; the price can be negotiated for bulk order.
5、Can I customize the size?
Yes, the power line can be customized according to your requirements.
6、What is your payment term?
We mainly request TT payment, T/T 30% deposit to confirm order and proceed before production, balance before shipment. Paypal and western union are acceptable for sample order.
