The same color is inserted regardless of male and female, mechanical parts anti-dull design, fire retardant V0 grade.Rated current 50A, rated voltage 600V.
Item No :
SGOrder(MOQ) :
1Payment :
TTProduct Origin :
DongguanColor :
grayShipping Port :
ShenzhenLead Time :

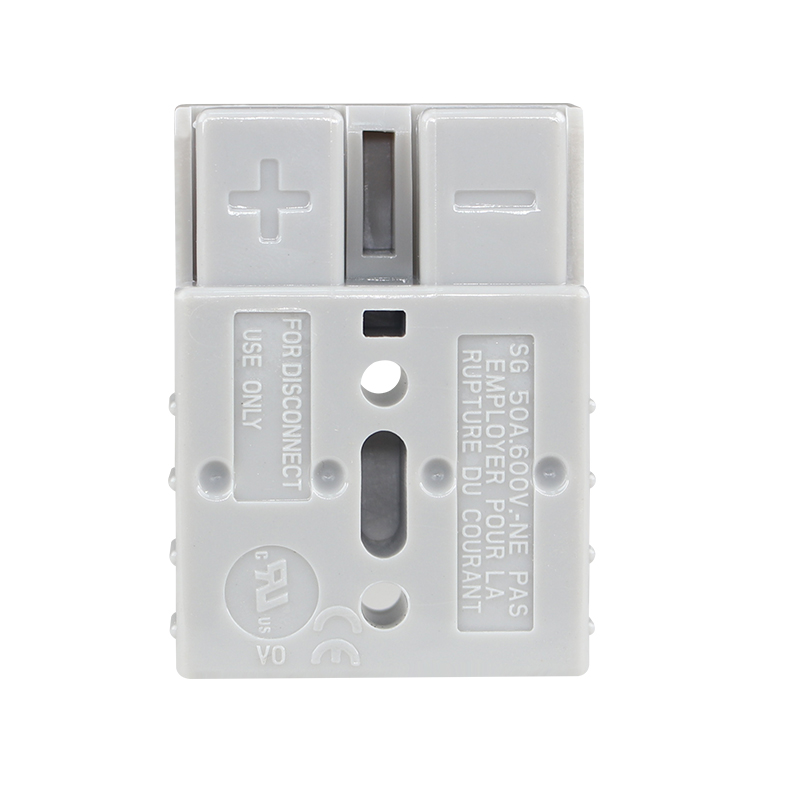

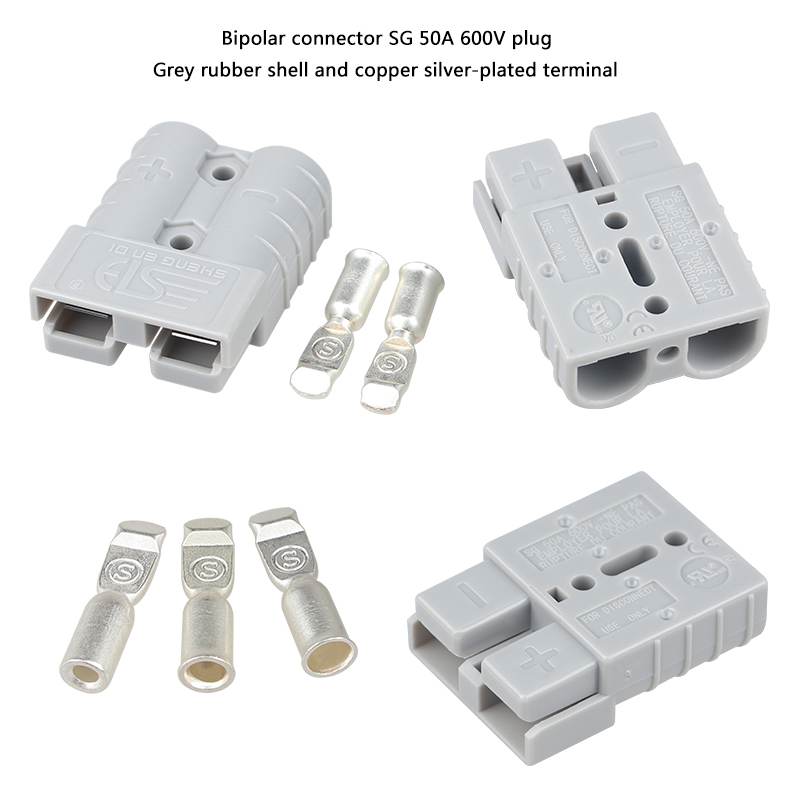

As specified by the customerBipolar 50A 600V gray plug electric vehicle battery connector

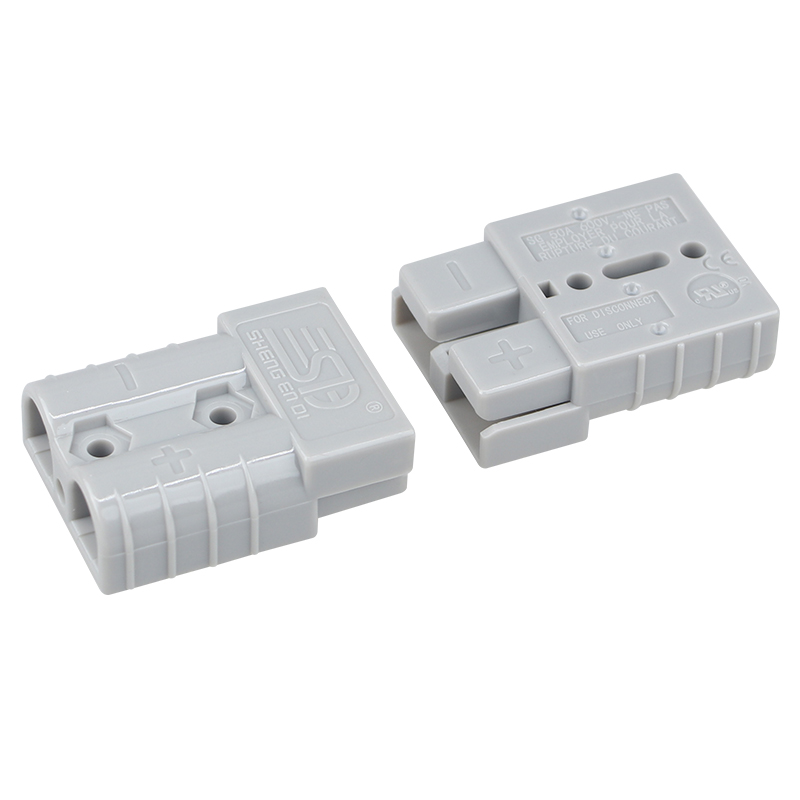

Rubber shell mechanical parts anti-dull design: the same color to insert regardless of male and female,Prevents accidental cross mating of circuits;

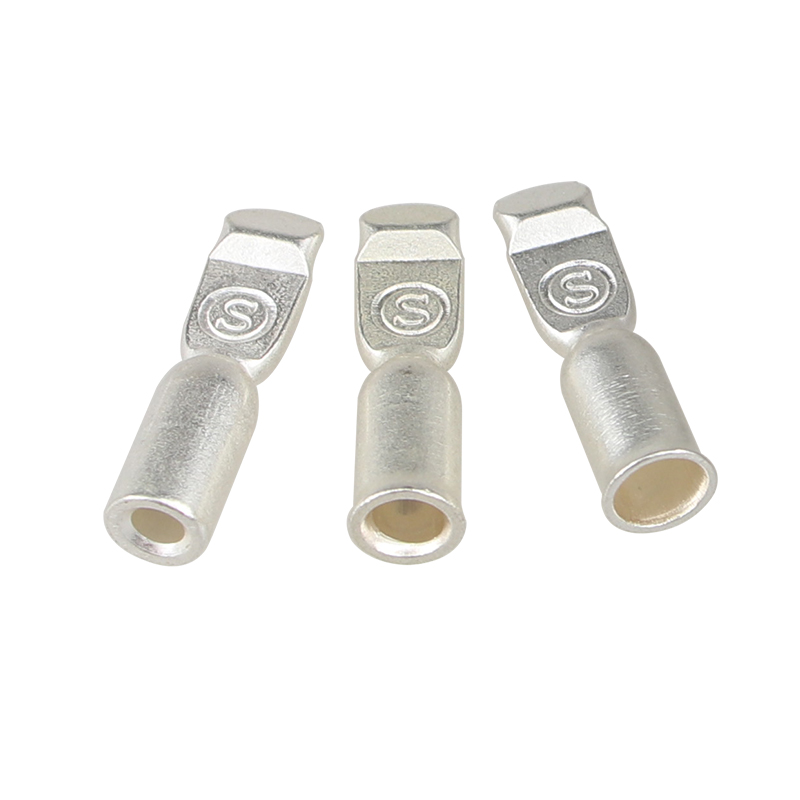

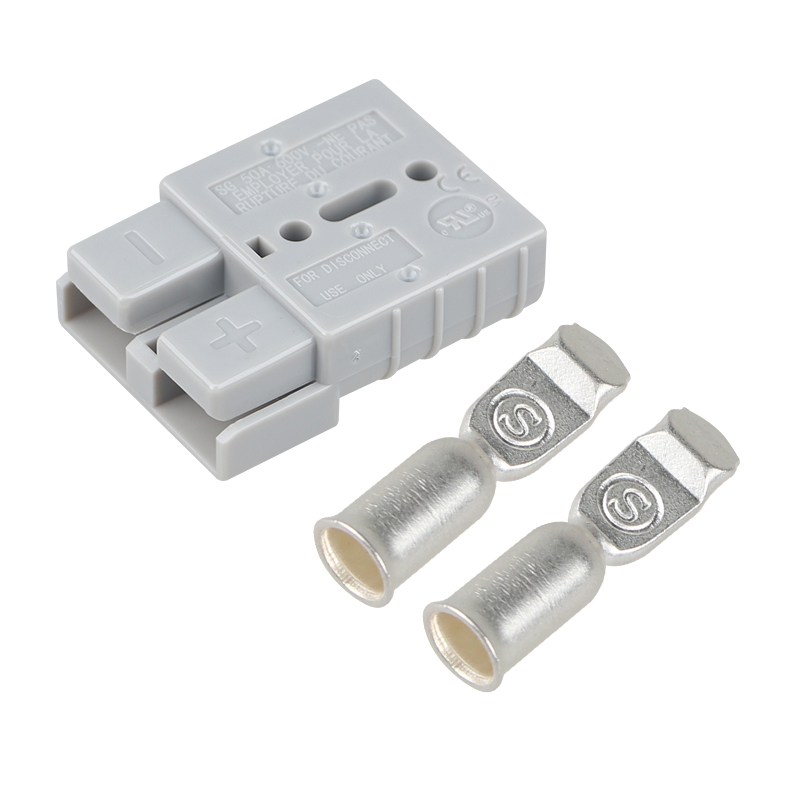

Conductive metal parts: copper plated silver terminal, wiring aperture specifications 6, 8, 10, 12, 14, 16AWG wire diameter.
Hot Plugging AC or DC:Contacts feature a sacrificial tip that allows high current circuit interrupt;
Self Securing Design:Stainless steel springs create a robust force between the contacts thatholds the connector in the mated position;
Parameter:
| Product Name | 50A 600V battery connector |
| Rated current | 50A |
| Rated voltage | AC/DC 600V (Max) |
| Shell color | gray |
| Shell material | PC (polycarbonate) ,Flame retardant V0 class |
| Contact terminal material | 99.99% pure copper and silver plated |
| Terminal pins | Choosing the corresponding terminal pins according to the size of the wire |
| Wiring specification | 6,8,10,12,14,16AWG |
| Environment temperature | -20℃~105℃ |
Notice: Plugs are neither male nor female, they are genderless.For pairing, just buy any two connectors of the same color andamperage.
Bipolar 50A 600V battery connector accessories: T-type handle, triangle handle, cable cover handle, dust cover, cable plug, stainless steel cable dust cover, first generation sheath, second generation with cover sheath, double sleeve tube sheath
GuangDong SED CO., LTD.Is a research and development, production and sales of connector enterprises, from the connector design drawings, development of molds, injection production, assembly and assembly of connectors, testing and shipping, wiring custom plug wire, the production of connector plugs, connector accessories, plug wire harness, one-stop connector and wire harness overall solution.
SED has laboratory, testing room and automatic production workshop, passed ISO9001, IATF16949 quality system certification, products passed UL/CUL, CE, ROSH, REACH, a number of product certification, has obtained more than 40 national trademark patents, get a number of new invention patents.
FQA：
1.Are you a manufacturer or a trading company?
SED is a manufacturer of battery connectors, connector accessories, power cords, one-stop connectors and wire harness solutions.
2.What’s your MOQ?
Minimum order quantity 1, factory direct supply, no limit on the quantity of purchase, order delivery, free samples
3.Do you support OEM customization?
Supports various connector customization, connector accessories customization, plug wire customization
4.What is the delivery time?
Do not specify the time, order delivery, according to the customer's specified time delivery
5.How to place an order or know more about the products?
Contact sales staff online or by email
