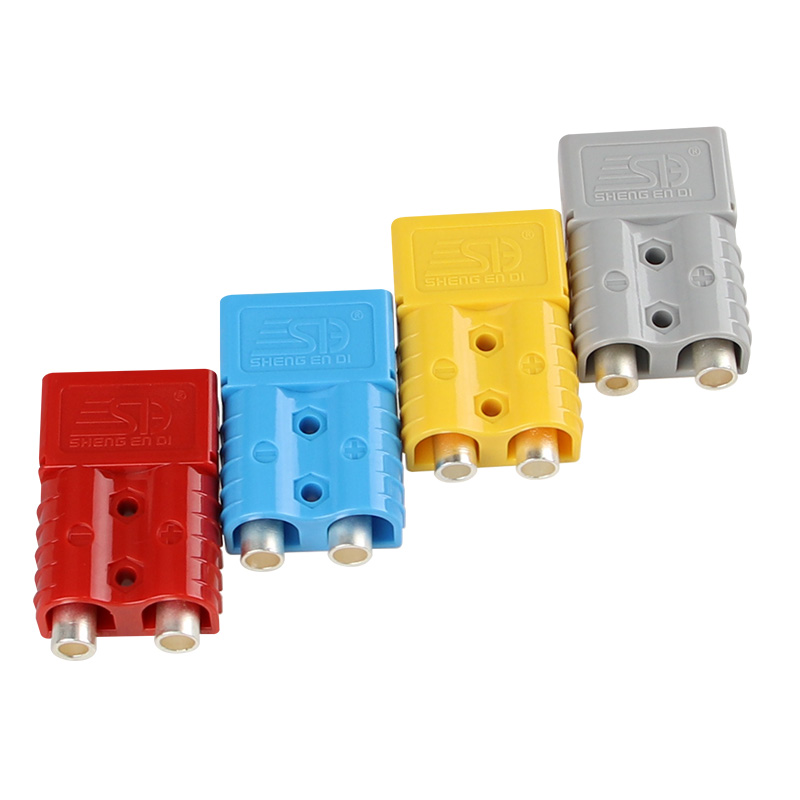

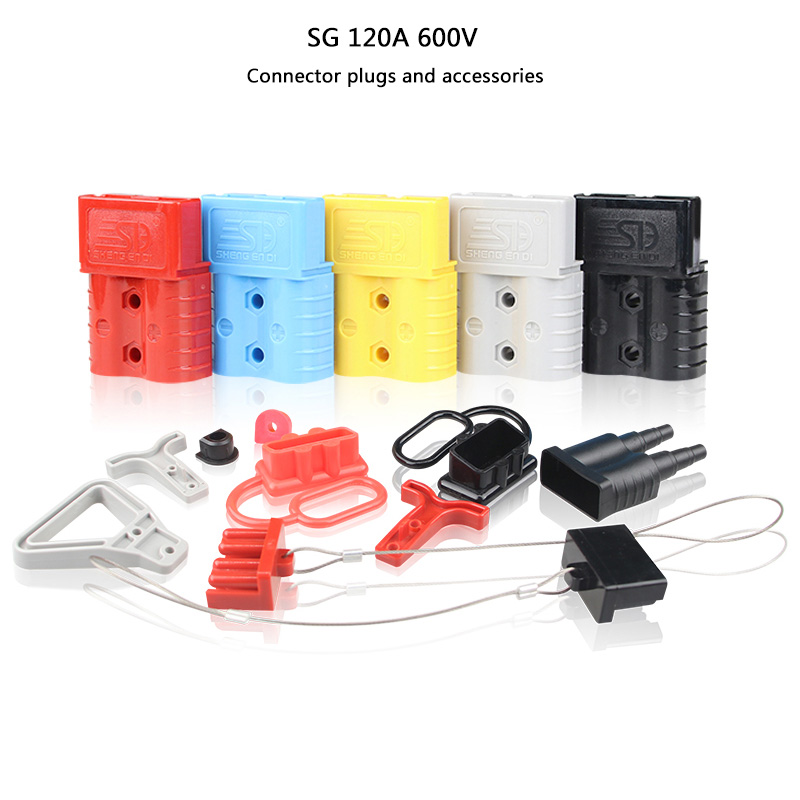

120A 600V Connector 2 Pin Battery Connector Plug

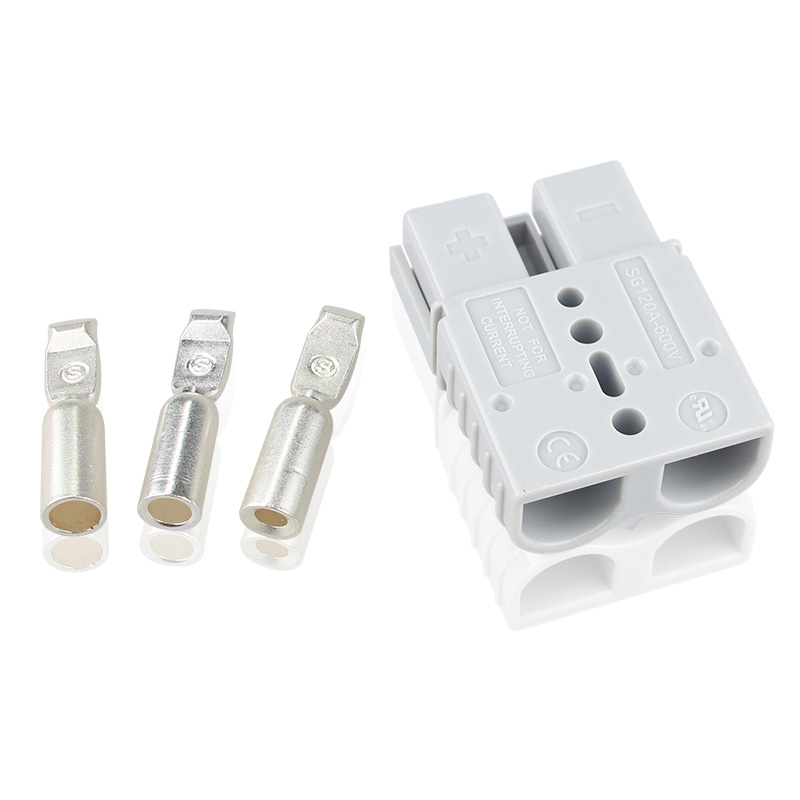

Simple Installation - Fits 4,6, 8 ,10, 12, 14 Awg Cable;   Voltage 600V Max;   Just put the cable in terminal,solder or crimp them, then slide them into the back of plug and lock in place



PC Housing - The shell of the battery quick connector made of PC (polycarbonate), which provides superior resistance to wear, corrosion, water, and heat.    Each connector has an internal stainless steel spring to hold its electrical contacts in place, providing reliable service through 10,000+ separate connections.

120A 600V Connector 2 Pin Battery Connector Plug

High Conductivity - the copper terminal pins are silver plated to minimize electrical resistance while offering exceptional durability and stability.

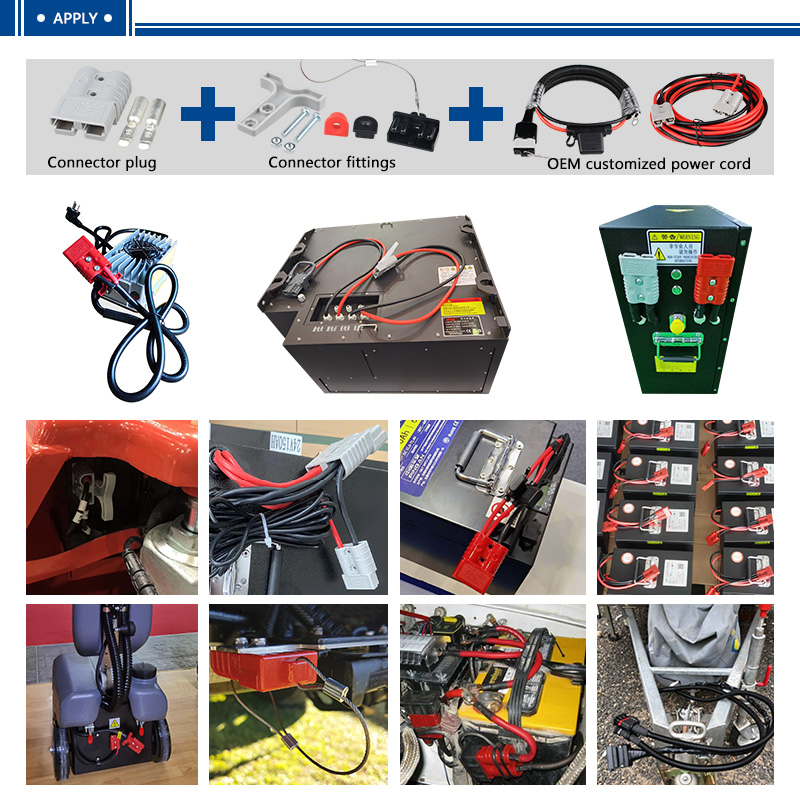

Wide Application - Our battery quick connector provides a simple and convenient method for quick connect/disconnect power to battery , it is widely used in winch, trailer, trolling motor,electric forklift,solar panel, storage battery,inverter,electric vehicles,electric wheelchairs, UPS communication power supply and other electrical device



Product Name 2-Pin power connector
Rated current 120A
Rated voltage AC/DC 600V (Max)
Material Shell material: PC (polycarbonate),Contact terminal material: 99.99% pure copper and silver plated

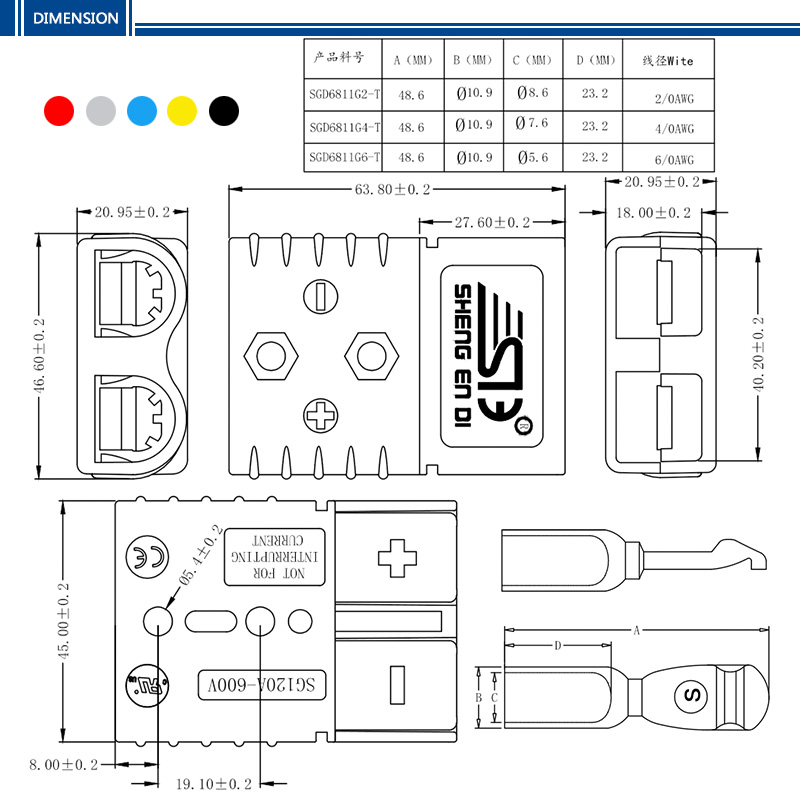

Terminal pins Choosing the corresponding terminal pins according to the size of the wire

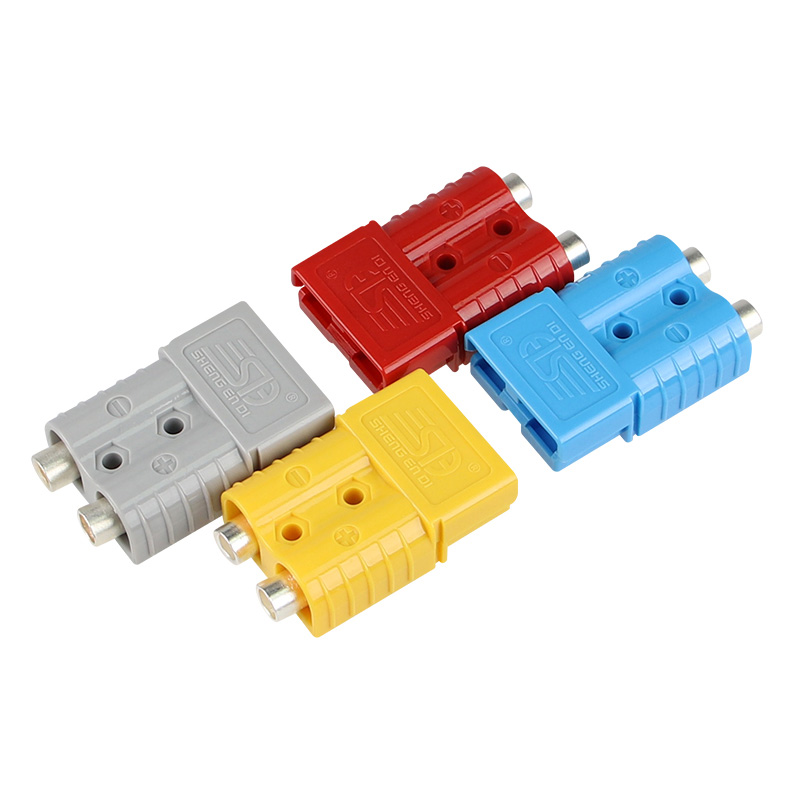

Color Gray/red/black/blue/yellow/ (optional, commonly used colors are gray and red)
LOGO Accept to customize.welcome to customize logo or with our logo"SED" or without logo
Application Apply for battery, electric vehicle, UPS communication power supply, electric machine, electric forklift, power equipment, etc
MOQ NO limited,we have all the model in stock,production capacity: 100000pcs/day

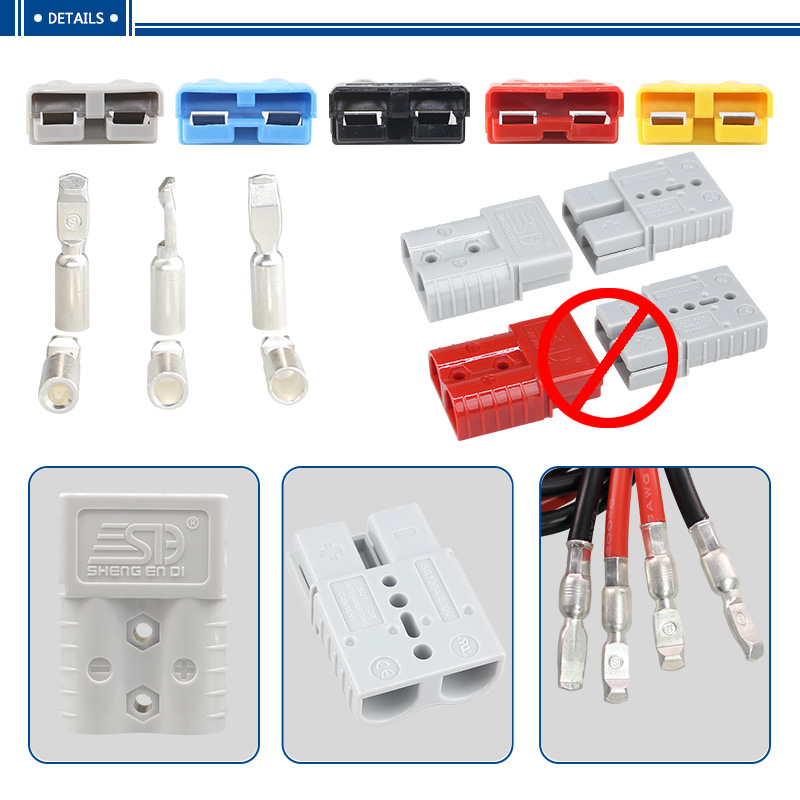

Notice: Plugs are neither male nor female, they are genderless.For pairing, just buy any two connectors of the same color andamperage.
