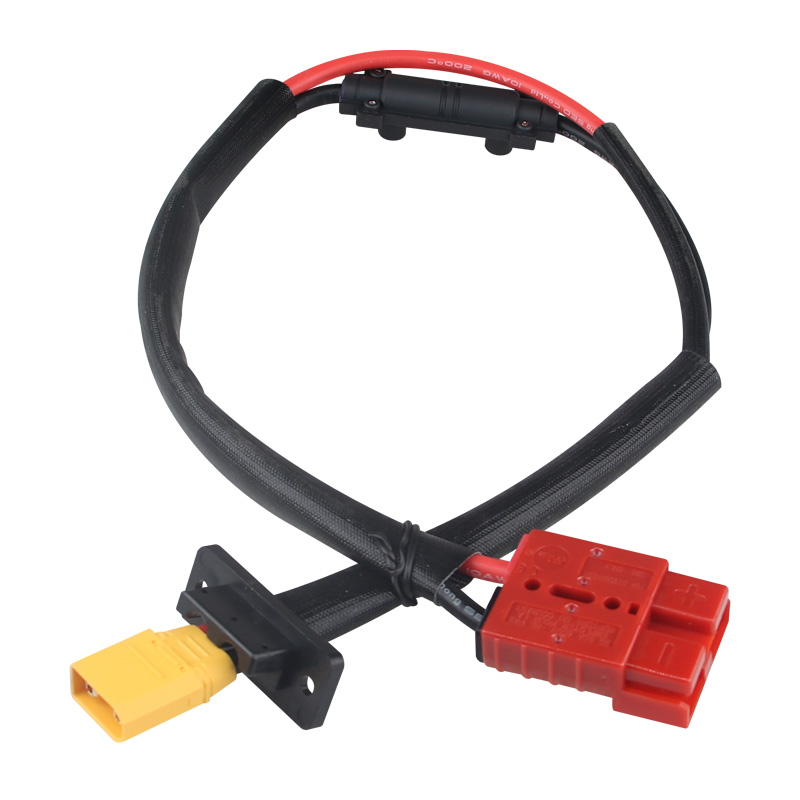

SED 50A Red Anderson Connector Fuse Main XT Wiring Harness.
This innovative product, designed and crafted by SED, promises optimal performance and durability for your power connectivity needs.
Item No :
SGOrder(MOQ) :
1Payment :
TTProduct Origin :
DongguanShipping Port :
ShenzhenLead Time :
Delivery time according to customer requirementsThe SED 50A Red Anderson Connector Fuse Main XT Wiring Harness stands out for its high-quality construction and exceptional performance. Let's delve into its features:
1. **Durable Build:**
Crafted from UL94V-0 rated PC material, this wiring harness ensures robustness and durability. The injection molding process guarantees a precise and reliable product.
2. **Efficient Conductivity:**
The conductor metal parts, made of silver-plated copper, offer excellent conductivity. This ensures a stable and efficient flow of power for your electrical systems.
3. **Brand Trust:**
SED, a trusted brand in the industry, brings you a product that reflects reliability and quality. Count on SED for your power connectivity solutions.
Parameter:
| Product Name | 50A Red Anderson Connector Fuse Main XT Wiring Harness |
| Rated current(Amperes) | 50A |
| Rated voltage(Volts) | 600V |
| Insulation Resistance | 9900MΩ |
| Flammability | UL94 V-0 |
| (AWG) Contact Barrel Wire Size(AWG) | 6AWG~12AWG |
| Process of production | Precision punching |
| Environment temperature | -20℃---75℃ |
| Material of terminal | Red copper |
Detailed introduction ：
At Guang Dong SED, we are trailblazers, constantly pushing the boundaries of what's possible. We offer an extensive range of connector accessories that perfectly complement our outstanding OEM wire harness customization services. Our commitment is unwavering, and our mission is clear: to provide comprehensive connector and wire harness solutions that cater to a diverse array of requirements.
Elevate your power connectivity with the Power Connector 50A 120A 175A 350A Quick Anderson Connector in red.
SED 50A Red Anderson Connector Fuse Main XT Wiring Harness. Trust in SED's commitment to quality and innovation for a reliable and efficient electrical system.
FQA：
1.Are you the manufacturer?
Yes, we are a manufacturer, brand SED, with the strength of connector and harness one-stop service.
2.What’s your MOQ?
There is no limit on the quantity of purchase, and the order is shipped
3.Is customization supported?
Support LOGO customization, support color customization, support connector open mold injection molding customization, support OEM wiring harness customization.
4.What is the delivery time?
Do not specify the time, order delivery, according to the customer's specified time delivery
5.How to place an order or know more about the products?
Contact sales staff online or by email
The same color is inserted regardless of male and female, mechanical parts are designed to prevent stupidity, rated current 50A, rated voltage 600V High Conductivity - the copper terminal pins are silver plated to minimize electrical resistance while offering exceptional durability and stability. Notice: Plugs are neither male nor female, they are genderless.For pairing, just buy any two connectors of the same color andamperage.
Learn More
Simple Installation - Fits 4,6, 8 ,10, 12, 14 Awg Cable; Voltage 600V Max; Just put the cable in terminal,solder or crimp them, then slide them into the back of plug and lock in place PC Housing - The shell of the battery quick connector made of PC (polycarbonate), which provides superior resistance to wear, corrosion, water, and heat. Each connector has an internal stainless steel spring to hold its electrical contacts in place, providing reliable service through 10,000+ separate connections.
Learn More
- Foolproof Design: The gender-neutral and color-matching insertion mechanism ensures hassle-free and secure connections. - Color-Coded Safety: Different colored connectors cannot be interlocked, minimizing the risk of incorrect connections and enhancing overall safety.
Learn More
350A 600V Lithium Polymer Battery Connector. Crafted with precision using high-grade PC injection molding, this connector boasts exceptional attributes that redefine durability and performance. - Premium PC Injection Molded Shell: Our connectors are encased in top-tier PC material, ensuring superior performance under various conditions. - Temperature Resilience: Operating flawlessly within a temperature range of -25°C to 125°C, our connectors maintain their efficiency in diverse environments.
Learn More
Bipolar plug 50A 600V wiring customization, 8AWG silicone wire 10m long end 50A plug, six-sided crimping wiring process, one-stop connector and wiring harness overall solution.
Learn More
The same color is inserted regardless of male and female, the accessory power plug is used in various occasions, rated current 50A, rated voltage 600V, a variety of rubber shell colors can be selected
Learn More
The same color is inserted regardless of male and female, mechanical parts anti-dull design, fire retardant V0 grade.Rated current 50A, rated voltage 600V.
Learn More
Rated current 50A, rated voltage 600V, bipolar connector red rubber shell, mechanical parts to prevent stupid design, the same color to insert regardless of male and female
