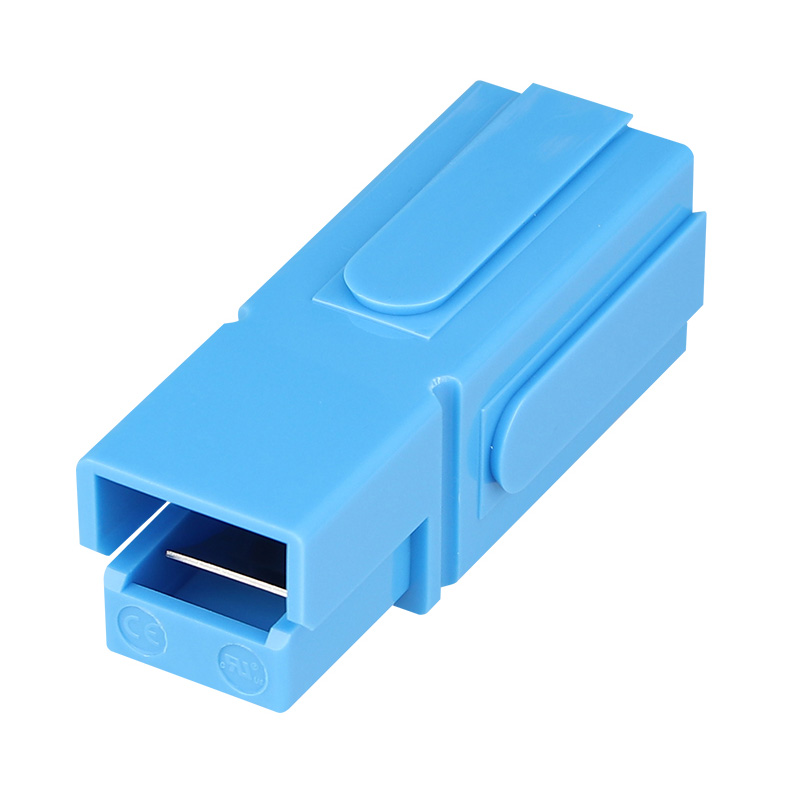

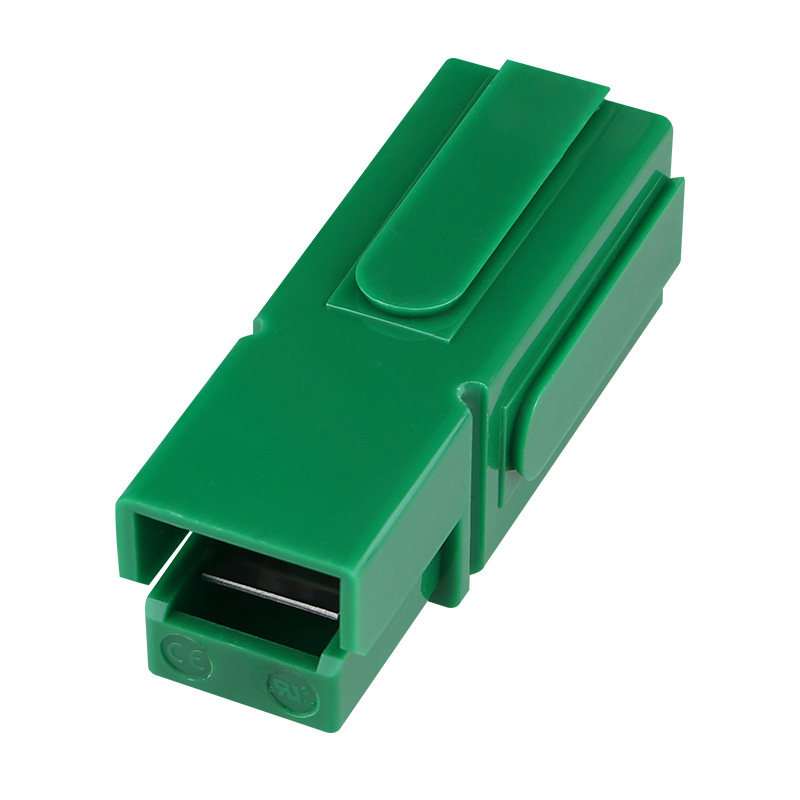

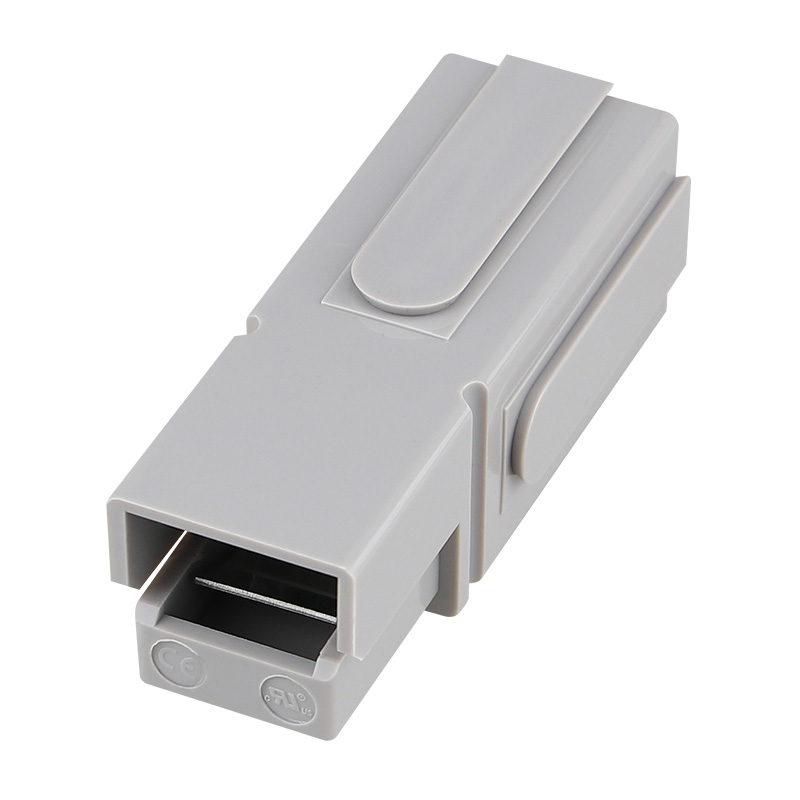

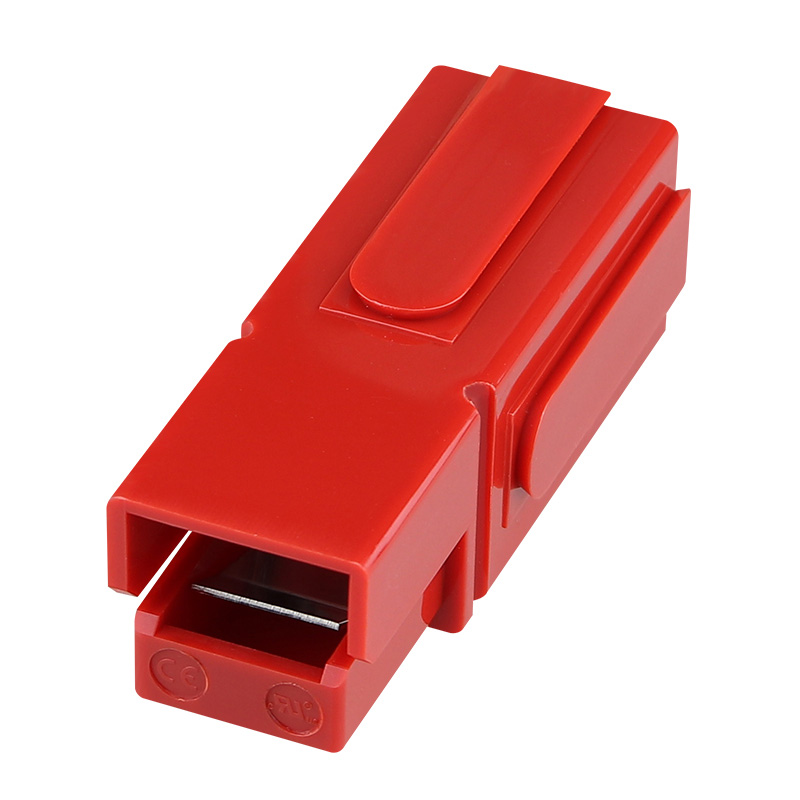

Anderson Single Pole Connector series, available in various amperages including 45A, 75A, 120A, 180A, and a robust 350A variant.
These connectors are engineered to deliver high-performance and reliability in a wide range of power applications.
Item No :
SDOrder(MOQ) :
1Payment :
TTProduct Origin :
DongguanColor :
YellowShipping Port :
ShenzhenLead Time :
Delivery time according to customer requirements45A 75A 120A 180A 350A Anderson Single Pole Connector
1. **High Amperage Ratings:** With options ranging from 45A to a robust 350A, these connectors are designed to handle high current requirements in demanding applications.
2. **Versatile AC/DC Compatibility:** Suitable for both AC and DC power sources, providing flexibility in a variety of power supply setups.
3. **Durable Insulation:** The insulator is made of high-quality PC material with UL94V-0 flame retardant properties, ensuring safety and durability.

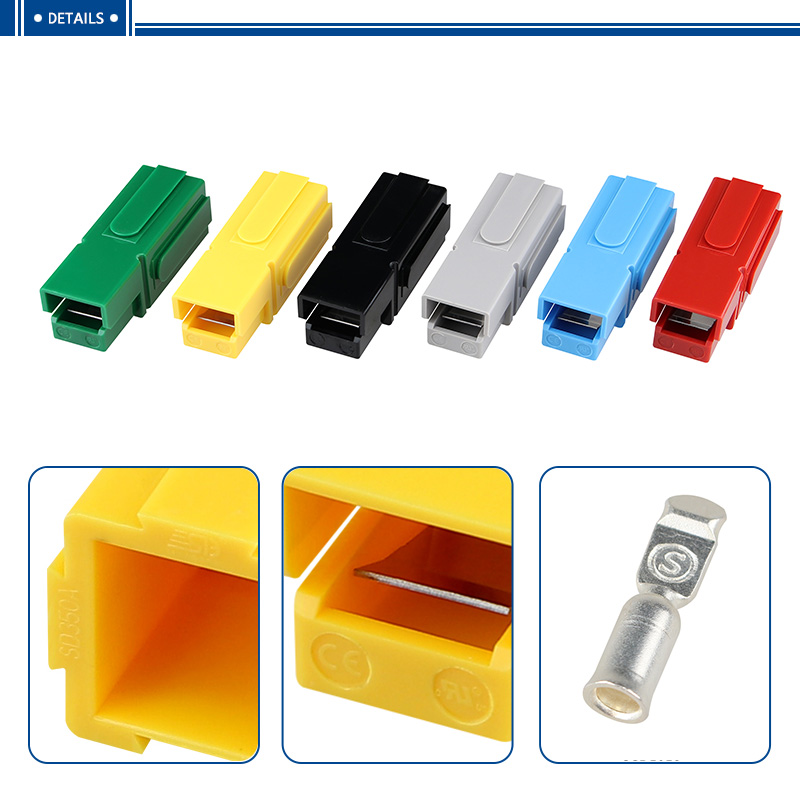

4. **Silver-Plated Copper Contacts:** The connectors feature contacts made from silver-plated copper, enhancing conductivity and corrosion resistance.
5. **High-Frequency Operation:** Designed to operate seamlessly at high frequencies, making them suitable for a wide range of applications requiring efficient power transmission.
6. **Single Core Wire Harness:** The connectors support single-core wire harness configurations, streamlining the installation process.
7. **User-Friendly Design:** The connectors are non-gendered, allowing for easy and intuitive connection. Additionally, the same-color mating feature simplifies installation.
Parameter:
| Product Name | 45A 75A 120A 180A 350A Anderson Single Pole Connector |
| Rated current(Amperes) | 350A |
| Rated voltage(Volts) | 600V |

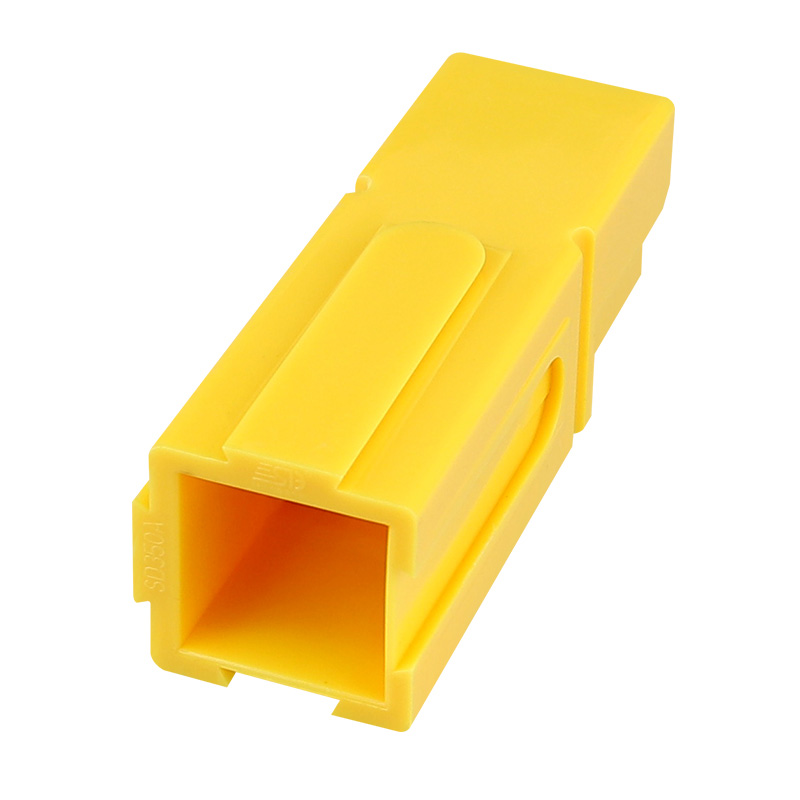

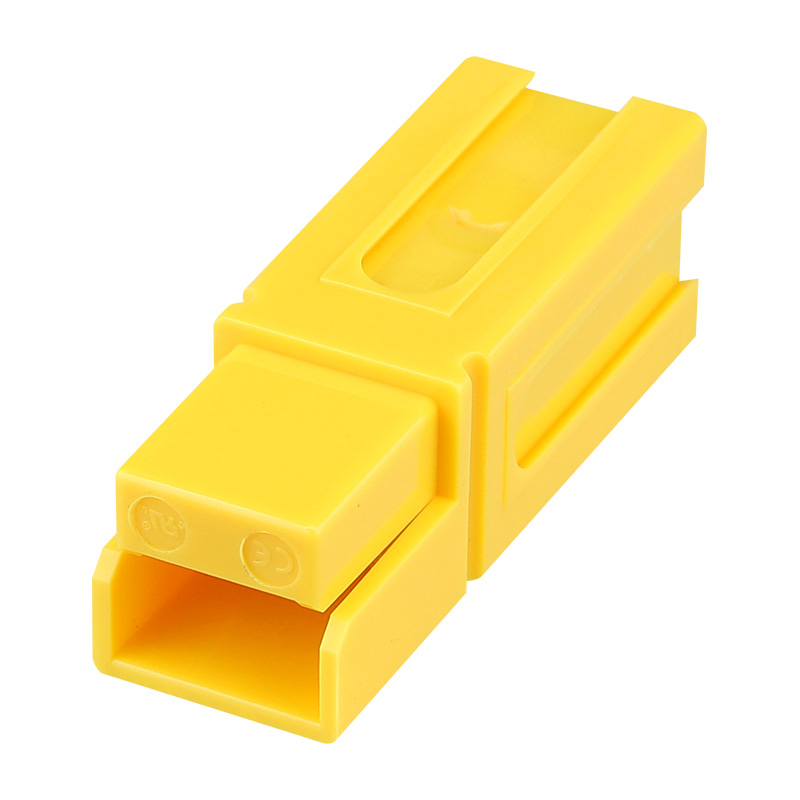

| Shell color | Yellow |
| Insulation Resistance | 5000MΩ |
| Flammability | UL94 V-0 |
| (AWG) Contact Barrel Wire Size(AWG) | 1/0~3/0AWG |
| Process of production | Precision punching |
| Environment temperature | -20℃---125℃ |
| Material of terminal | Red copper |
Detailed introduction ：
At Guang Dong SED, we are pioneers in pushing boundaries, offering an expansive selection of connector accessories that seamlessly complement our exceptional OEM wire harness customization services. Our dedication remains steadfast – we deliver comprehensive connector and wire harness solutions to meet a wide spectrum of needs.
Trust in SED Connector's quality and innovation for all your power connection needs. Upgrade to the SED Connector 120A 600V today, and experience the difference in performance and reliability. Power up with confidence!
Invest in the reliability and performance of the Anderson Single Pole Connector series for your high-power applications.
With a focus on durability, versatility, and user-friendly design, these connectors offer a dependable solution for your power connectivity needs.
Whether for industrial or renewable energy applications, trust the Anderson Single Pole Connector series to deliver power efficiently and safely.
FQA：
1.Are you the manufacturer?
Yes, we are a manufacturer, brand SED, with the strength of connector and harness one-stop service.
2.What’s your MOQ?
There is no limit on the quantity of purchase, and the order is shipped
3.Is customization supported?
Support LOGO customization, support color customization, support connector open mold injection molding customization, support OEM wiring harness customization.
4.What is the delivery time?
Do not specify the time, order delivery, according to the customer's specified time delivery
5.How to place an order or know more about the products?
Contact sales staff online or by email
The same color is inserted regardless of male and female, mechanical parts are designed to prevent stupidity, rated current 50A, rated voltage 600V High Conductivity - the copper terminal pins are silver plated to minimize electrical resistance while offering exceptional durability and stability. Notice: Plugs are neither male nor female, they are genderless.For pairing, just buy any two connectors of the same color andamperage.
