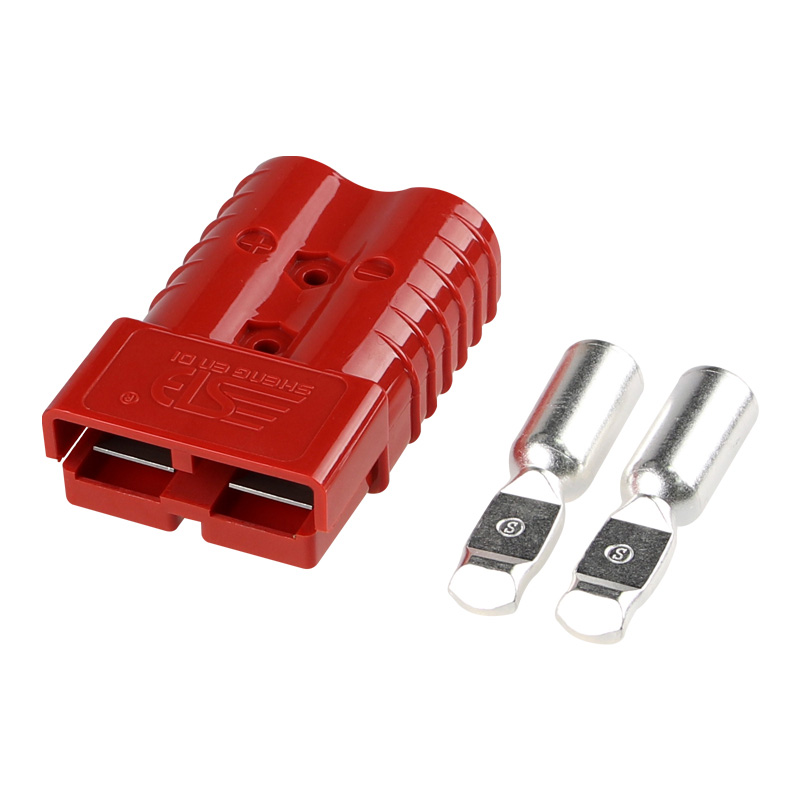

350A Red Fast Power Products Anderson Connector, a high-performance and versatile solution for your power connectivity needs.
This Anderson connector, known for its reliability and efficiency, is designed to meet the demands of various applications.
Item No :
SGOrder(MOQ) :
1Payment :
TTProduct Origin :
DongguanColor :
RedShipping Port :
ShenzhenLead Time :
Delivery time according to customer requirements350A Red Fast Power Products battery plug connector

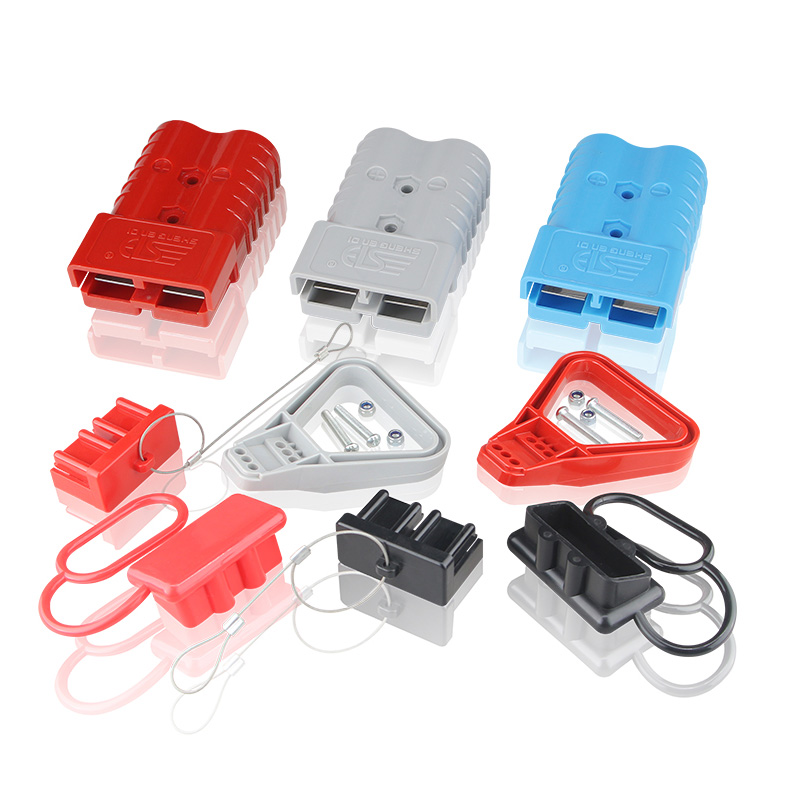

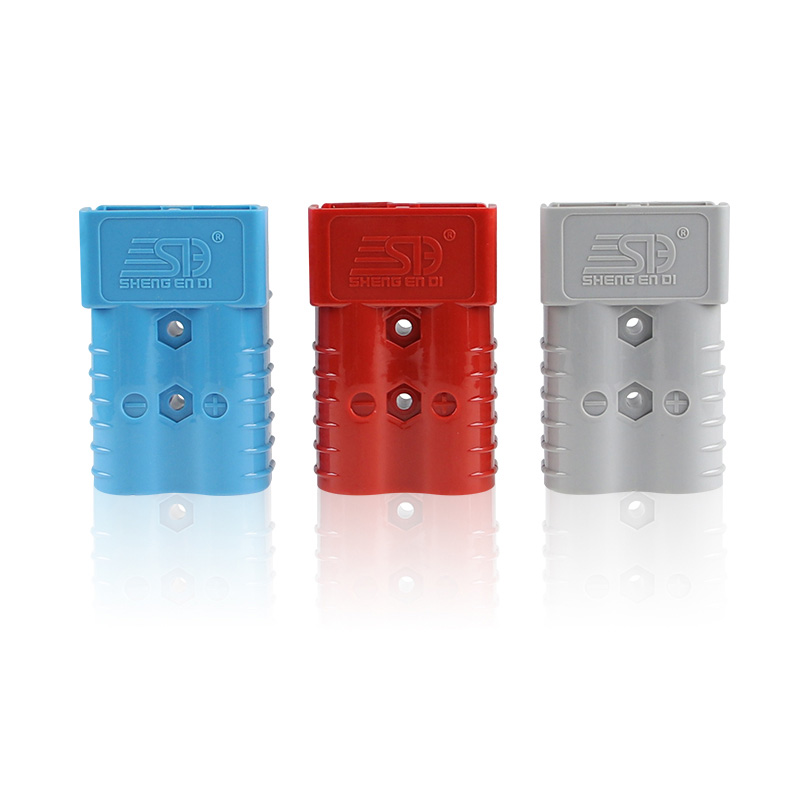

1. **Multiple Shell Colors:** The connector is available in multiple shell colors, including gray, red, and blue. Custom color options are also supported, allowing you to tailor it to your specific needs.
2. **Universal Design:** The Anderson connector does not differentiate between male and female connectors, and connectors of the same color can effortlessly interlock, simplifying the installation process.
3. **Robust Construction:** Crafted using precision injection molding, the connector features a high-quality PC UL94V-0 insulating shell, ensuring durability and safety.
4. **Enhanced Conductivity:** The connector's contact components are made of silver-plated copper, providing superior electrical conductivity for optimal performance.
5. **Cold-Pressed Six-Sided Crimping:** The connector utilizes a cold-pressed, six-sided crimping process for secure and reliable wire connections.
Parameter:
| Product Name | 350A Red Fast Power Products battery plug connector |
| Rated current(Amperes) | 350A |
| Rated voltage(Volts) | 600V |
| Shell color | Red |
| Insulation Resistance | 5000MΩ |
| Flammability | UL94 V-0 |
| (AWG) Contact Barrel Wire Size(AWG) | 1/0AWG~3/0AWG |
| Process of production | Precision punching |
| Environment temperature | -20℃---125℃ |
| Material of terminal | Red copper |
Detailed introduction ：
At Guang Dong SED, we are trailblazers, constantly pushing the boundaries of what's possible. We offer an extensive range of connector accessories that perfectly complement our outstanding OEM wire harness customization services. Our commitment is unwavering, and our mission is clear: to provide comprehensive connector and wire harness solutions that cater to a diverse array of requirements.
Your satisfaction is our priority. We stand by the quality and reliability of our 120A Gray Lithium Polymer Battery Connector. If you encounter any issues or have questions, our dedicated customer support team is here to assist you.
Whether you need a reliable power connection for your electric vehicle, renewable energy project, or industrial equipment, the 350A Anderson Connector is the solution you can count on.
Elevate your power connectivity with this high-quality, versatile Anderson Connector. Order now and experience the convenience, efficiency, and reliability it offers.
FQA：
1.Are you the manufacturer?
Yes, we are a manufacturer, brand SED, with the strength of connector and harness one-stop service.
2.What’s your MOQ?
There is no limit on the quantity of purchase, and the order is shipped
3.Is customization supported?
Support LOGO customization, support color customization, support connector open mold injection molding customization, support OEM wiring harness customization.
4.What is the delivery time?
Do not specify the time, order delivery, according to the customer's specified time delivery
5.How to place an order or know more about the products?
Contact sales staff online or by email
The same color is inserted regardless of male and female, mechanical parts are designed to prevent stupidity, rated current 50A, rated voltage 600V High Conductivity - the copper terminal pins are silver plated to minimize electrical resistance while offering exceptional durability and stability. Notice: Plugs are neither male nor female, they are genderless.For pairing, just buy any two connectors of the same color andamperage.
Learn More
Simple Installation - Fits 4,6, 8 ,10, 12, 14 Awg Cable; Voltage 600V Max; Just put the cable in terminal,solder or crimp them, then slide them into the back of plug and lock in place PC Housing - The shell of the battery quick connector made of PC (polycarbonate), which provides superior resistance to wear, corrosion, water, and heat. Each connector has an internal stainless steel spring to hold its electrical contacts in place, providing reliable service through 10,000+ separate connections.
Learn More
- Foolproof Design: The gender-neutral and color-matching insertion mechanism ensures hassle-free and secure connections. - Color-Coded Safety: Different colored connectors cannot be interlocked, minimizing the risk of incorrect connections and enhancing overall safety.
Learn More
350A 600V Lithium Polymer Battery Connector. Crafted with precision using high-grade PC injection molding, this connector boasts exceptional attributes that redefine durability and performance. - Premium PC Injection Molded Shell: Our connectors are encased in top-tier PC material, ensuring superior performance under various conditions. - Temperature Resilience: Operating flawlessly within a temperature range of -25°C to 125°C, our connectors maintain their efficiency in diverse environments.
Learn More
The same color is inserted regardless of male and female, the accessory power plug is used in various occasions, rated current 50A, rated voltage 600V, a variety of rubber shell colors can be selected
Learn More
The same color is inserted regardless of male and female, mechanical parts anti-dull design, fire retardant V0 grade.Rated current 50A, rated voltage 600V.
Learn More
Rated current 50A, rated voltage 600V, bipolar connector red rubber shell, mechanical parts to prevent stupid design, the same color to insert regardless of male and female
Learn More
40A Black Discharge Electric Plug Connector – a pinnacle of innovation, reliability, and functionality in the world of electric vehicle charging. Designed for convenience and efficiency, this plug boasts a seamless and effortless charging experience for both commercial and personal use.
Learn More
