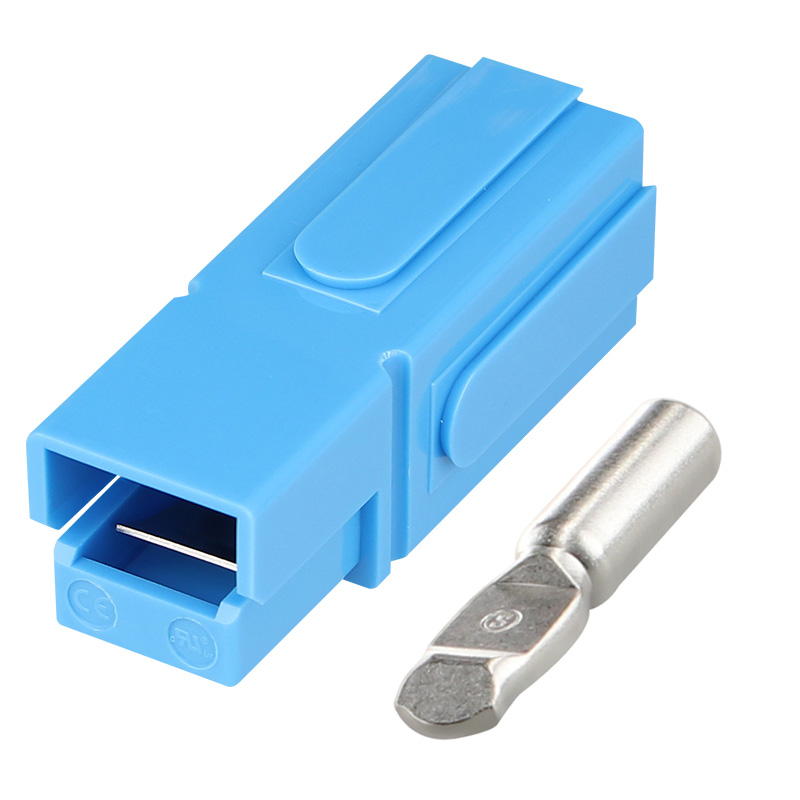

High-performance 350A Blue Charging Anderson Plug, specially designed to cater to the charging needs of elderly electric scooters.
This product is meticulously crafted to ensure reliable power connectivity and user-friendly operation.
Item No :
SDOrder(MOQ) :
1Payment :
TTProduct Origin :
DongguanColor :
BlueShipping Port :
ShenzhenLead Time :
Delivery time according to customer requirements350A Blue Charging Anderson Plug For Elderly Electric Scooters
1. **High Power Performance:** With a current capacity of 350A and a voltage rating of 600V, this Anderson Plug is designed to handle the high-power requirements of electric scooters used by the elderly.
2. **Versatile AC/DC Compatibility:** Suitable for both AC and DC applications, providing flexibility in charging and power supply.
3. **Durable Construction:** The plug features a robust construction with an insulation material made of PC UL94V-0, ensuring reliability and safety.
4. **Silver-Plated Copper Contacts:** The use of high-quality silver-plated copper contacts enhances conductivity, reducing resistance and optimizing charging efficiency.
5. **User-Friendly Design:** The plug is designed with a single-core cable harness and a contact interface, allowing for easy and efficient connections.
6. **Color-Coded Convenience:** The gray color not only adds a sleek aesthetic but also supports user-friendly operation. The same-color mating feature simplifies the plug-in process.
Parameter:
| Product Name | 350A Blue Charging Anderson Plug For Elderly Electric Scooters |
| Rated current(Amperes) | 350A |
| Rated voltage(Volts) | 600V |
| Shell color | Blue |
| Insulation Resistance | 5000MΩ |
| Flammability | UL94 V-0 |
| (AWG) Contact Barrel Wire Size(AWG) | 1/0~3/0AWG |
| Process of production | Precision punching |
| Environment temperature | -20℃---125℃ |
| Material of terminal | Red copper |
Detailed introduction ：
At Guang Dong SED, we are pioneers in pushing boundaries, offering an expansive selection of connector accessories that seamlessly complement our exceptional OEM wire harness customization services. Our dedication remains steadfast – we deliver comprehensive connector and wire harness solutions to meet a wide spectrum of needs.
Trust in SED Connector's quality and innovation for all your power connection needs. Upgrade to the SED Connector 120A 600V today, and experience the difference in performance and reliability. Power up with confidence!
Whether you are a user of elderly electric scooters or a manufacturer catering to this demographic, the 350A Blue Charging Anderson Plug offers a reliable and efficient charging solution.
Its high-quality construction and user-friendly features make it an ideal choice for those seeking a dependable power connection for electric mobility solutions.
FQA：
1.Are you the manufacturer?
Yes, we are a manufacturer, brand SED, with the strength of connector and harness one-stop service.
2.What’s your MOQ?
There is no limit on the quantity of purchase, and the order is shipped
3.Is customization supported?
Support LOGO customization, support color customization, support connector open mold injection molding customization, support OEM wiring harness customization.
4.What is the delivery time?
Do not specify the time, order delivery, according to the customer's specified time delivery
5.How to place an order or know more about the products?
Contact sales staff online or by email
The same color is inserted regardless of male and female, mechanical parts are designed to prevent stupidity, rated current 50A, rated voltage 600V High Conductivity - the copper terminal pins are silver plated to minimize electrical resistance while offering exceptional durability and stability. Notice: Plugs are neither male nor female, they are genderless.For pairing, just buy any two connectors of the same color andamperage.
