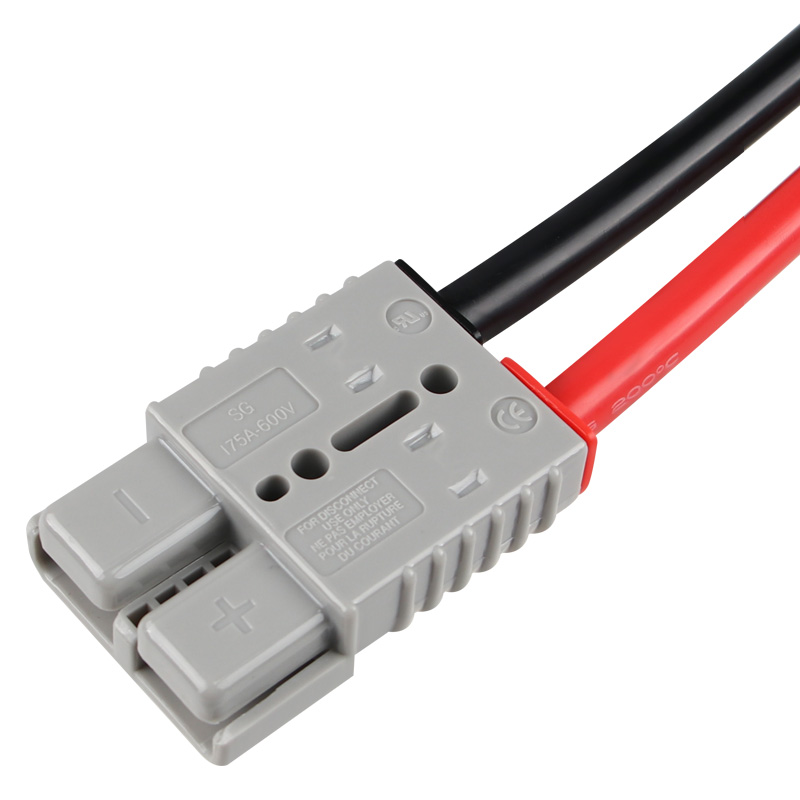

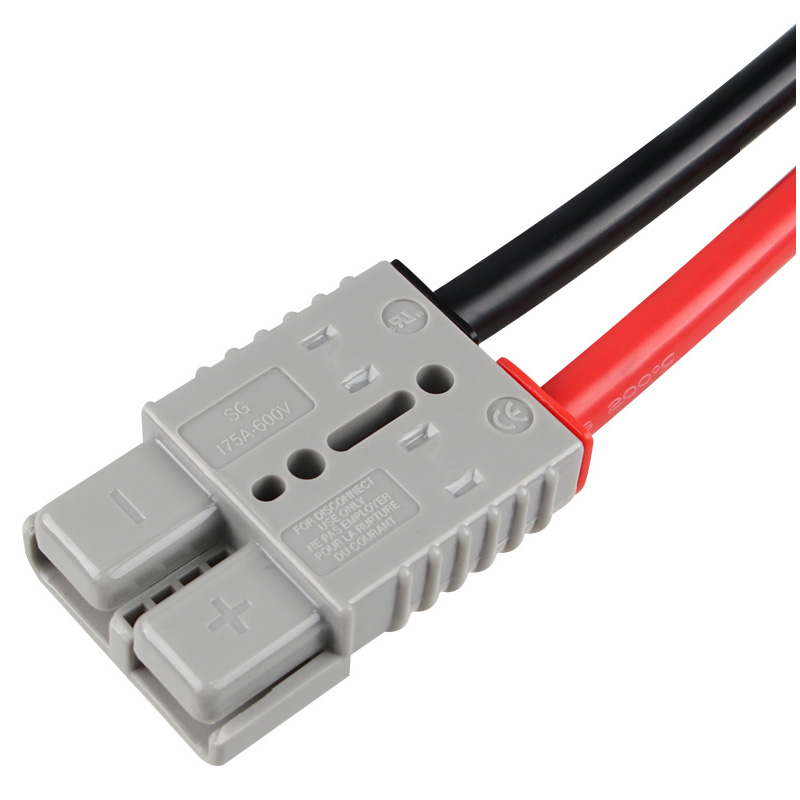

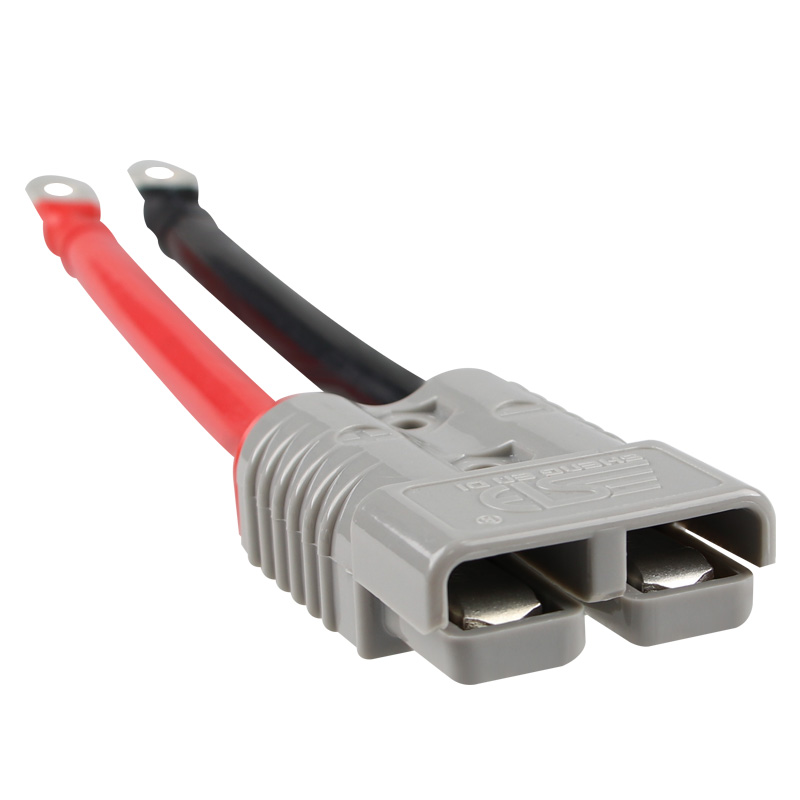

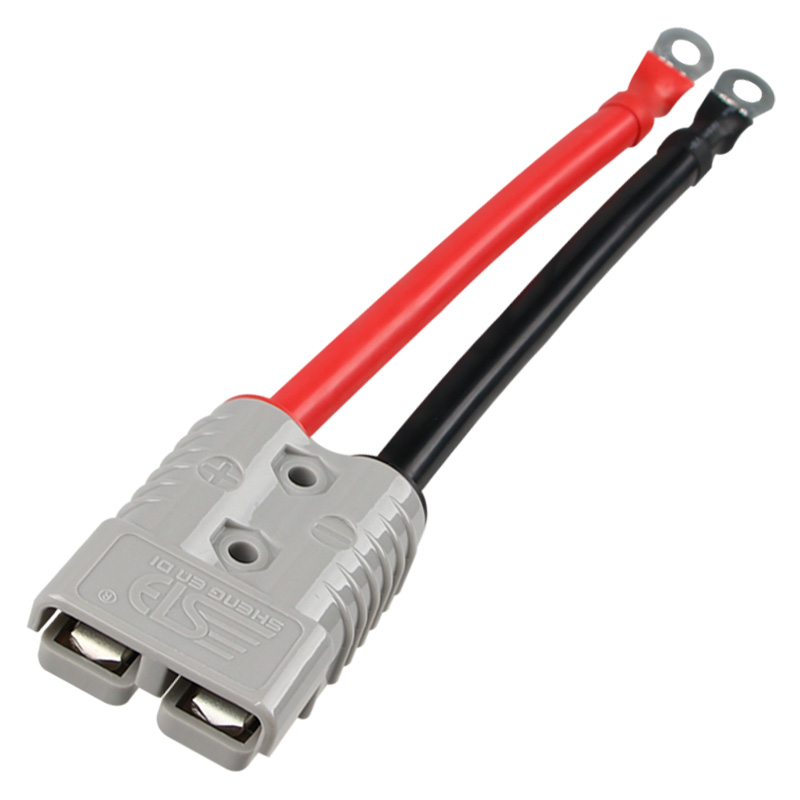

SED 175A 600V Anderson Connector Harness—a cutting-edge product designed for robust electrical connectivity.
Crafted with precision and featuring advanced materials, this connector harness is your go-to solution for efficient and reliable power transmission.
Item No :
SGOrder(MOQ) :
1Payment :
TTProduct Origin :
DongguanShipping Port :
ShenzhenLead Time :
Delivery time according to customer requirements175A 600V Anderson Connector Harness
1. **High-Quality Materials:**
- Material: PC UL94V-0
- Conductive Metal Parts: Silver-plated copper
2. **Advanced Manufacturing Process:**
- Technique: Injection molding
3. **Brand Assurance:**
- Brand: SED
4. **Electrical Specifications:**
- Rated Current: 175A
- Rated Voltage: 600V
- Operating Voltage: AC/DC Power Supply
5. **Temperature Performance:**
- Operating Temperature Range: -20°C to +125°C

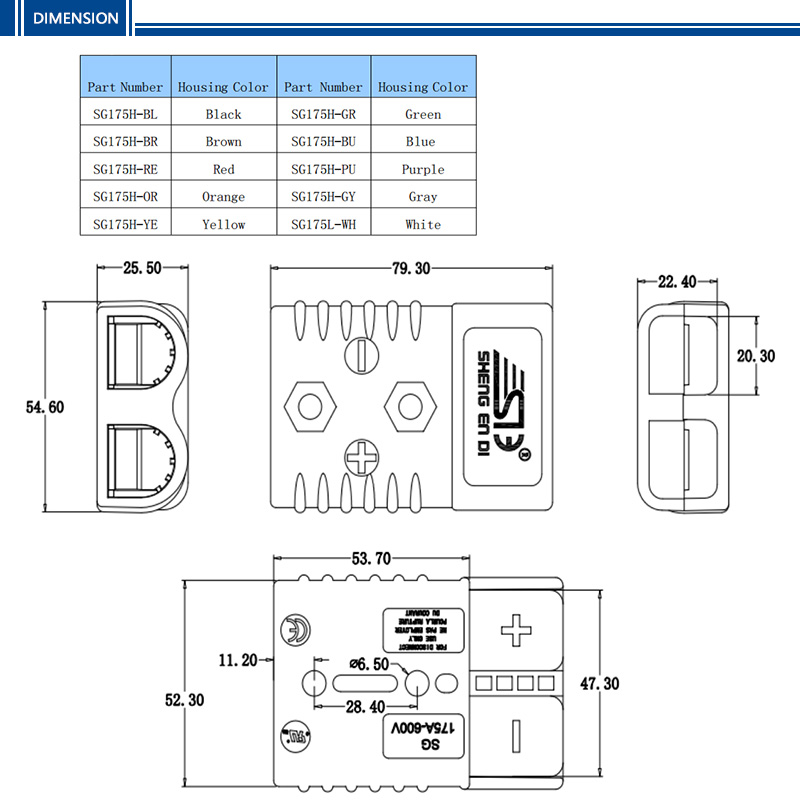

Parameter:
| Product Name | 175A 600V Anderson connector harness |
| Rated current(Amperes) | 175A |
| Rated voltage(Volts) | 600V |
| Shell color | Gray |
| Insulation Resistance | 5000MΩ |
| Flammability | UL94 V-0 |
| (AWG) Contact Barrel Wire Size(AWG) | 0/4AWG~1/0AWG |
| Process of production | Precision punching |
| Environment temperature | -20℃---125℃ |
| Material of terminal | Red copper |
Detailed introduction ：
At Guang Dong SED, we are trailblazers, constantly pushing the boundaries of what's possible. We offer an extensive range of connector accessories that perfectly complement our outstanding OEM wire harness customization services. Our commitment is unwavering, and our mission is clear: to provide comprehensive connector and wire harness solutions that cater to a diverse array of requirements.

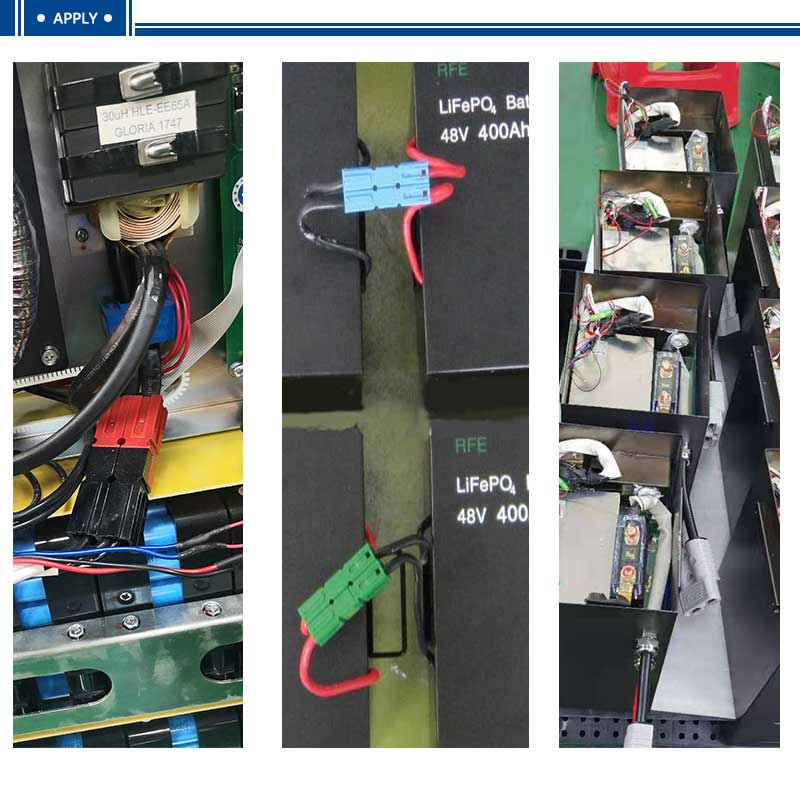

The 175A 600V Forklift Battery Connector Plug Anderson Connector is your reliable power solution for a wide range of applications.

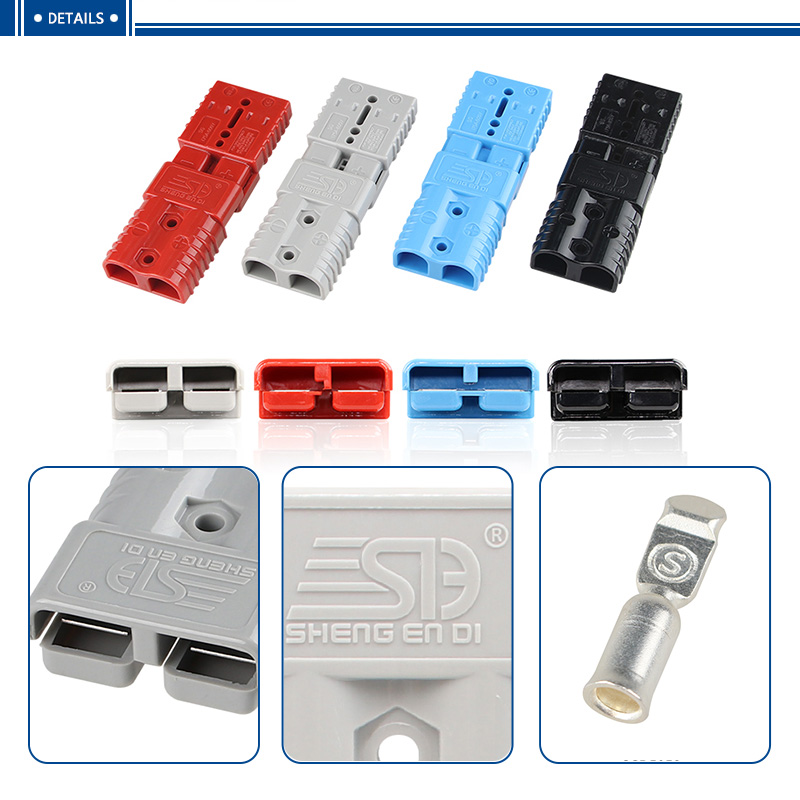

The SED 175A 600V Anderson Connector Harness is constructed with high-grade materials, featuring a PC UL94V-0 housing that ensures durability and flame resistance. The conductive metal parts are made from silver-plated copper, providing superior electrical conductivity for optimized power transmission.
Crafted using advanced injection molding technology, this connector harness guarantees a seamless and secure fit. The precision in manufacturing ensures a reliable connection that stands up to the rigors of various applications.
FQA：
1.Are you the manufacturer?
Yes, we are a manufacturer, brand SED, with the strength of connector and harness one-stop service.
2.What’s your MOQ?
There is no limit on the quantity of purchase, and the order is shipped
3.Is customization supported?
Support LOGO customization, support color customization, support connector open mold injection molding customization, support OEM wiring harness customization.
4.What is the delivery time?
Do not specify the time, order delivery, according to the customer's specified time delivery
5.How to place an order or know more about the products?
Contact sales staff online or by email
The same color is inserted regardless of male and female, mechanical parts are designed to prevent stupidity, rated current 50A, rated voltage 600V High Conductivity - the copper terminal pins are silver plated to minimize electrical resistance while offering exceptional durability and stability. Notice: Plugs are neither male nor female, they are genderless.For pairing, just buy any two connectors of the same color andamperage.
