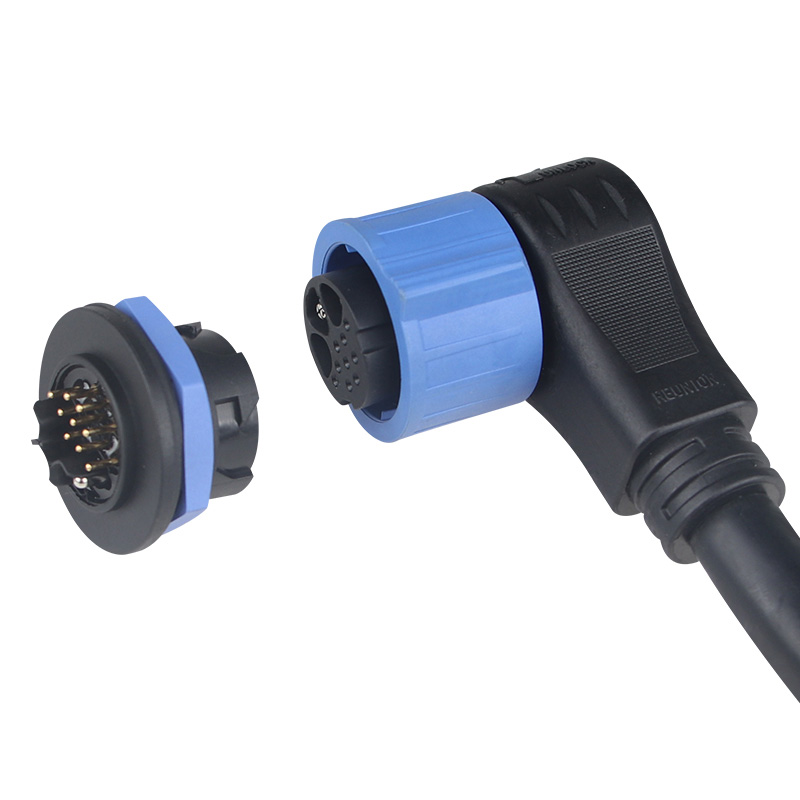

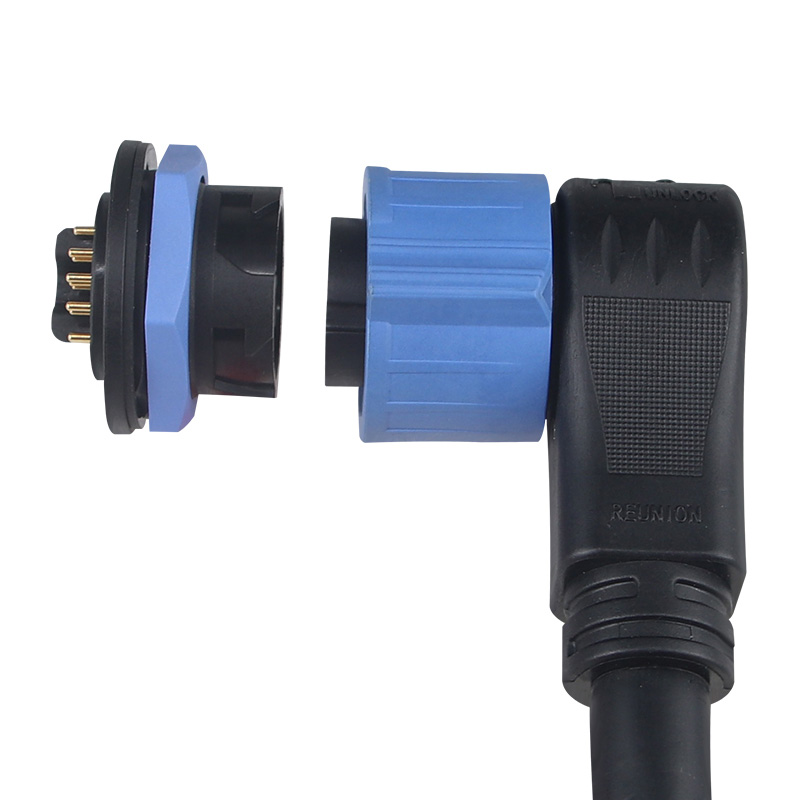

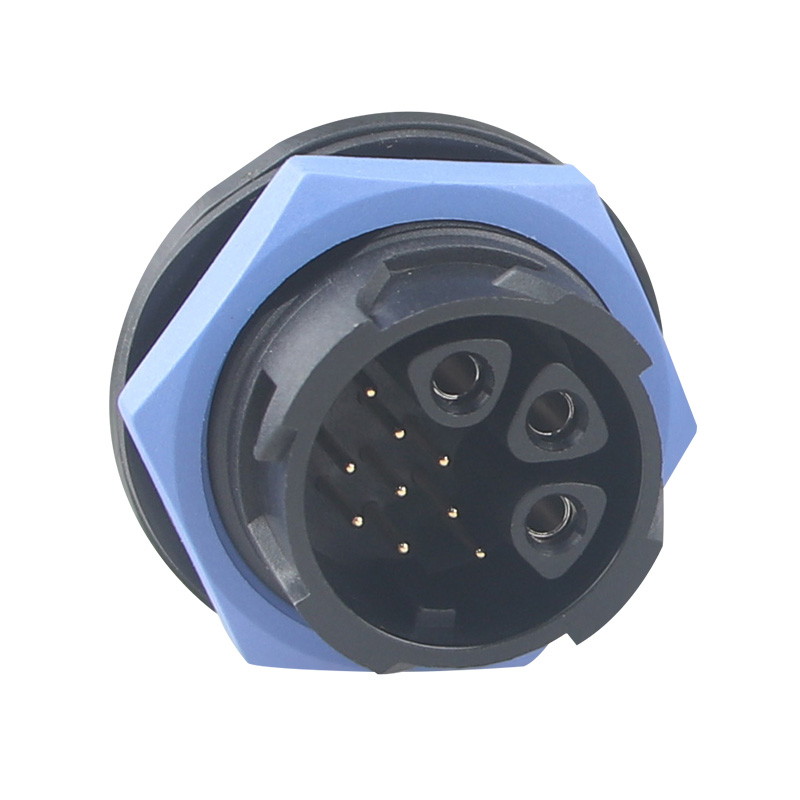

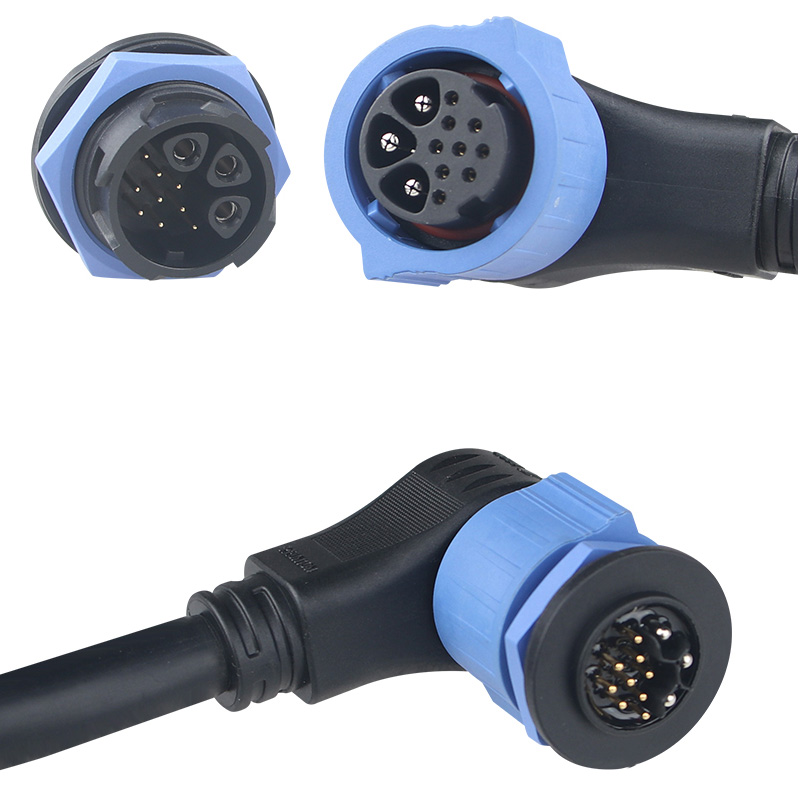

30A Blue 3+9 Fixed Female Elbow Connector, a cutting-edge solution for your energy storage needs.
With an IP67 waterproof rating and a 3+9 socket configuration, this connector is designed to meet your requirements for both power and signal transmission. With a rated current of 30A for power and 5A for signals, it offers optimal performance and reliability.
Order(MOQ) :
1Payment :
TTProduct Origin :
DongguanColor :
BlueLead Time :
Delivery time according to customer requirements30A 3+9 Blue waterproof connector

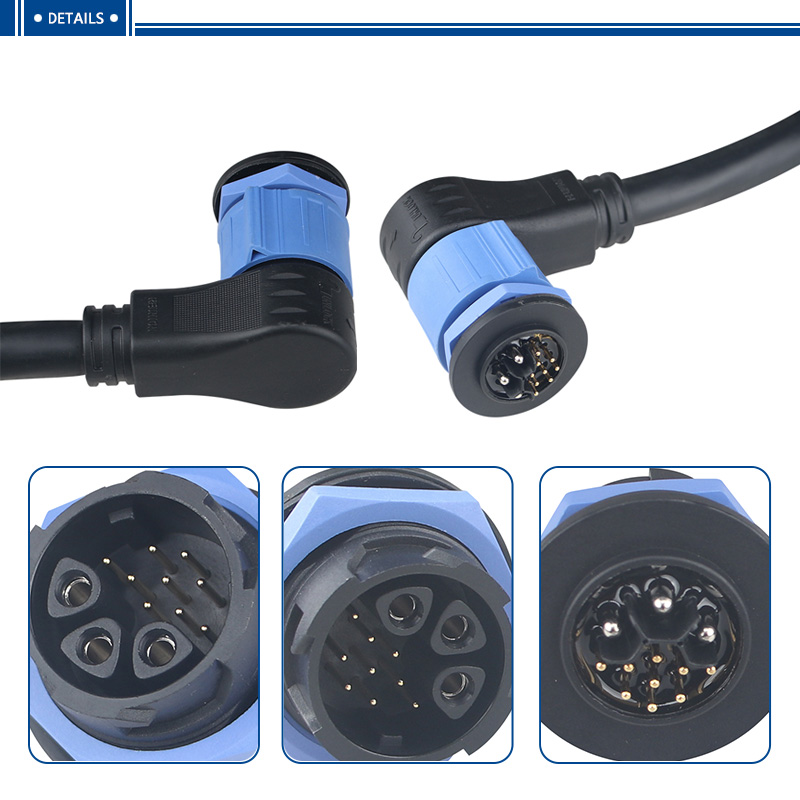

- 3+9 Configuration: This connector boasts a unique 3+9 design, providing a versatile and efficient solution for your connection needs.
- Robust Construction: Crafted from high-quality materials, the shell is made of PA6, nut is made of PA66, and the pins are plated with both gold and nickel for exceptional conductivity and durability.
- Welding Terminal Design: The welding terminal design ensures secure connections, enhancing the stability of your system.
- Customizable: With support for custom plug-in line solutions, this connector offers a comprehensive solution for your connection and harnessing needs.

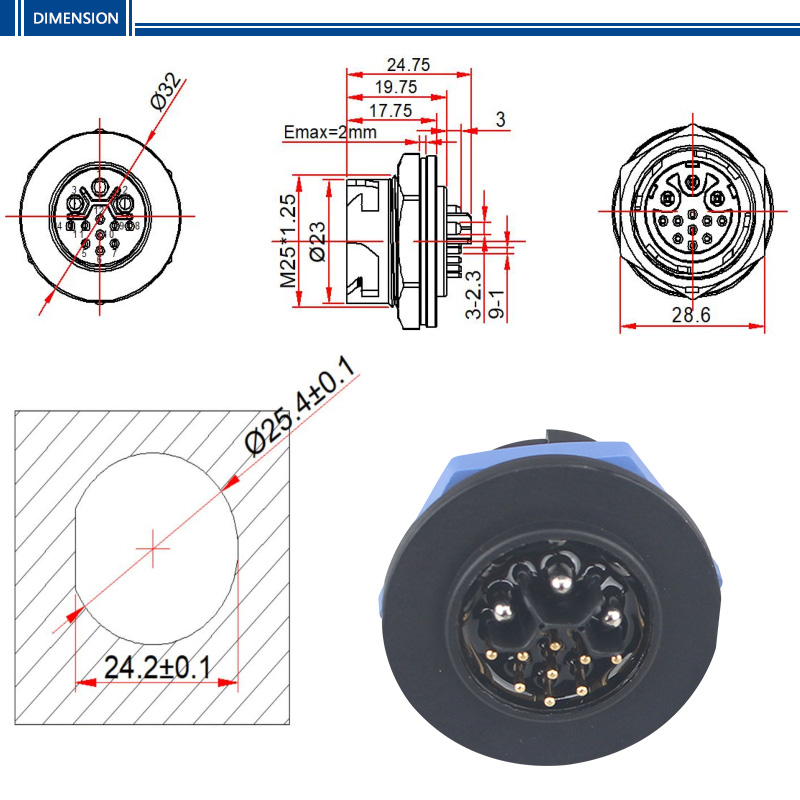

- Pin Diameter: Power pins feature a diameter of 2.4mm, while signal pins are 1.0mm in diameter.
- Longevity: Built to last, this connector offers reliable plug-and-play performance for up to 500 cycles.
- Wide Operating Range: With a working voltage of AC/DC 300V for power and DC 30V for signals, it is suitable for a range of applications.
- Impressive Insulation: Boasting an insulation resistance of 2000MΩ, this connector ensures exceptional safety and performance.
- Extreme Temperatures: Designed to thrive in demanding environments, it operates flawlessly between -40°C and +125°C.
- Corrosion-Resistant: Successfully enduring salt spray corrosion tests for over 48 hours, this connector proves its resilience.
- IP67 Protection: Achieving an IP67 protection rating, it excels in safeguarding against water and dust intrusion.
| Rated current | 30A |
| Rated Voltage | 300V |
| IP Degree | IP67 |
| Operating Temperature | -40°C~+125°C |
| Insulation resistance | 2000MΩ |
| Needle core diameter | power supply: 2.4mm; signal: 1.0mm |
FAQ:
1、SED brand advantage？
Support connector design mold customization, wiring customization, packaging customization, one-stop connector and wire harness overall solution
2、Service advantage？
24-hour online service, support online technical guidance services, engineering and technical personnel to provide solutions, return and exchange services
3、Are you a factory?
Yes, we have a factory located in Dongguan. Welcome to visit us.
4、What is the MOQ?
The sample in stock is 1pcs; the price can be negotiated for bulk order.
5、Can I customize the size?
Yes, the power line can be customized according to your requirements.
6、What is your payment term?
We mainly request TT payment, T/T 30% deposit to confirm order and proceed before production, balance before shipment. Paypal and western union are acceptable for sample order.
With a voltage rating of up to 1,000V and a current carrying capability of 120A at 85°C, the 120A connector system is specifically designed to ensure a safe and reliable connection between the charging interface, the on-board charger and the battery.connector systems a complete range of interfaces designed with touch-safe technology and shielding that prevents interference with other vehicle systems. connectors and terminals to deliver the highest possible voltage levels with minimum packaging.
Learn More
120A Male/Female Plug, the ultimate solution for outdoor energy storage connections. Designed for seamless integration with power distribution panels and wiring harnesses in electrical enclosures, this connector offers unparalleled performance with a host of advanced features. **Key Features:** - **IP67 Waterproof Rating:** Engineered to thrive in the harshest outdoor environments, our connector boasts an impressive IP67 waterproof rating, ensuring reliable performance even in challenging conditions.
Learn More
Experience unparalleled performance with our cutting-edge 3+9 Energy Storage Connector, engineered to exceed your expectations. With an IP67 waterproof rating, this connector is designed to thrive even in the most challenging environments.
Learn More

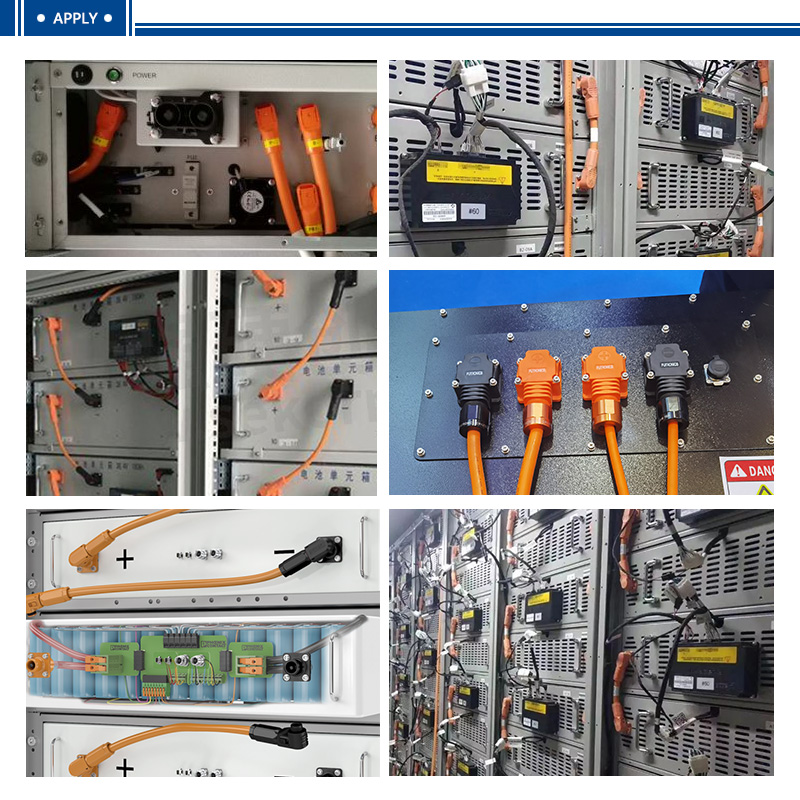

IP67 waterproof-rated connector designed for battery energy storage applications. This connector offers a seamless solution for both plug-in and weldable connections, along with comprehensive wiring harness solutions.
