Unipolar connector

/120A Unipolar Plug Black Connector Power Plug
120A Black Unipolar battery  connector
120A Unipolar Plug Black Connector Power Plug
120A Black Unipolar lithium battery connector
120A Black Unipolar mobile power connector
120A Black Single Pole Tourist car plug

120A Unipolar Plug Black Connector Power Plug

Upgrade your connections with the 120A Unipolar Plug Black Connector Power Plug. Say goodbye to tangled wires and complex setups – embrace efficiency and reliability like never before. Contact us today to explore our customization options and take your connectivity to the next level.

  • Item No :

    SD
  • Order(MOQ) :

    1
  • Payment :

    TT
  • Product Origin :

    Dongguan
  • Color :

    Black
  • Shipping Port :

    Shenzhen
  • Lead Time :

    Delivery time according to customer requirements

120A 600V Single Pole Connector Plug Insulation Material

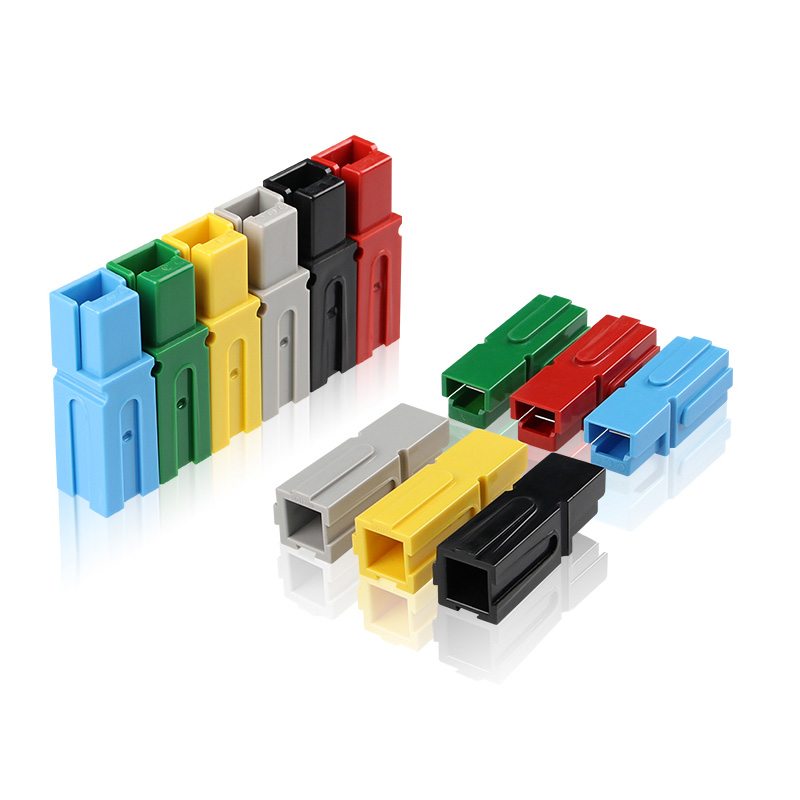

1. **Vibrant Color Variety:** Available in a range of colors including red, black, gray, blue, green, and yellow, our connectors allow you to color-coordinate your setups effortlessly.



2. **Premium Housing Material:** Crafted from high-quality PC UL94V-0 material, our connectors offer durability and safety that you can rely on.



3. **Precision Injection Molding:** Manufactured using precision injection molding techniques, ensuring a seamless and reliable design.



4. **Silver-Plated Copper Contacts:** The connectors feature contacts made from silver-plated copper, providing optimal conductivity and minimizing signal loss.



5. **Secure Hexagonal Crimping:** With our state-of-the-art cold-pressed hexagonal crimping process, you can be confident in the stability and integrity of your connections.



6. **Versatile Assembly:** Our connectors are designed for simplicity – they allow same-color pairing, don't differentiate between male and female ends, and can be easily assembled into multipole configurations.



7. **Direct from Manufacturer:** As a leading single-pole plug manufacturer, we are proud to offer these connectors directly to you, ensuring quality and authenticity.



8. **Customization Made Easy:** Need connectors with specific wire lengths or configurations? We've got you covered! Our connectors are fully customizable to meet your unique requirements.



Parameter:

Product Name 120A 600V Single Pole Connector Plug Insulation Material
Rated current(Amperes)  120A
Rated voltage(Volts) 600V
Shell color Black
Insulation Resistance 5000MΩ
Flammability UL94 V-0
(AWG) Contact Barrel Wire Size(AWG) 2~6AWG
Process of production Precision punching
Environment temperature -20℃---125℃
Material of terminal  Red copper



Detailed introduction :



At Guang Dong SED, we push boundaries, offering an extensive array of connector accessories that perfectly complement our exceptional OEM wire harness customization services. Our dedication is unwavering – we provide all-encompassing connector and wire harness solutions to address a diverse range of demands.



Our guiding principles are innovation, quality, and an unwavering commitment to customer satisfaction. We aspire to be more than just a supplier; we want to be your dependable collaborator across diverse sectors. Empowered by a state-of-the-art manufacturing facility and an exceptionally skilled team, we are poised to craft trustworthy and high-performance connectors and wire harnesses that exceed even the most stringent requirements.



FQA:

1.Are you the manufacturer?

Yes, we are a manufacturer, brand SED, with the strength of connector and harness one-stop service.

2.What’s your MOQ?

There is no limit on the quantity of purchase, and the order is shipped

3.Is customization supported?

Support LOGO customization, support color customization, support connector open mold injection molding customization, support OEM wiring harness customization.

4.What is the delivery time?

Do not specify the time, order delivery, according to the customer's specified time delivery

5.How to place an order or know more about the products?

Contact sales staff online or by email

leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
