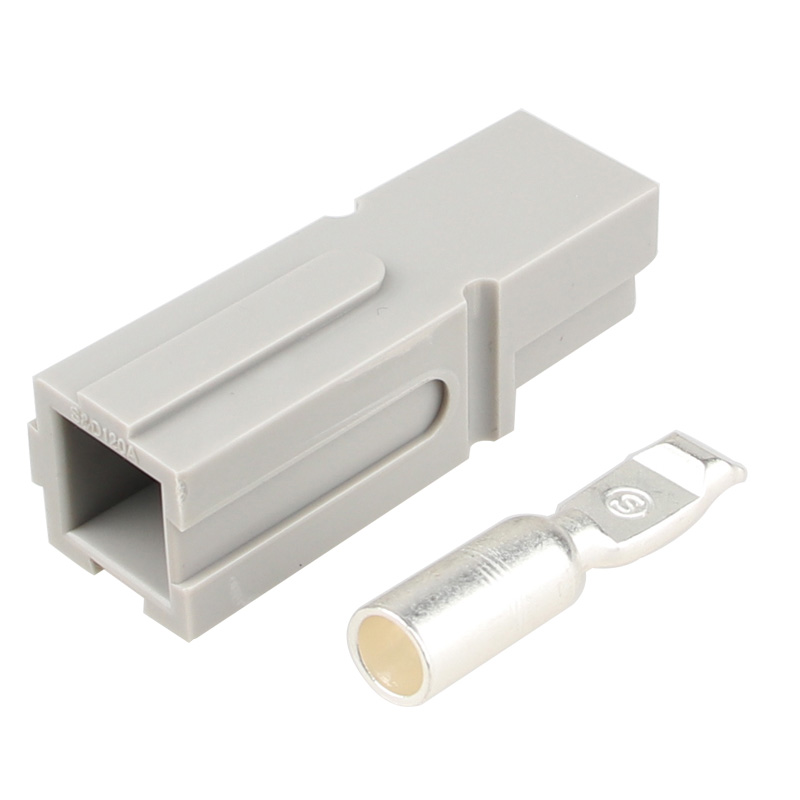

120A Gray High frequency module power quick plug
120A Gray Single Conductor Battery Connection
120A Gray Single Conductor Mobile Power Connector
120A Gray 1-POLE Monopole Battery Connection
120A Gray Electric wheelchair plug

120A Gray High frequency module power quick plug

The 120A Gray High frequency module power quick plug by SED Connector offers exceptional versatility and performance. With its distinctive features, this connector is a game-changer for various industries.

  • Item No :

    SD
  • Order(MOQ) :

    1
  • Payment :

    TT
  • Product Origin :

    Dongguan
  • Color :

    Gray
  • Shipping Port :

    Shenzhen
  • Lead Time :

    Delivery time according to customer requirements

120A Gray High frequency module power quick plug

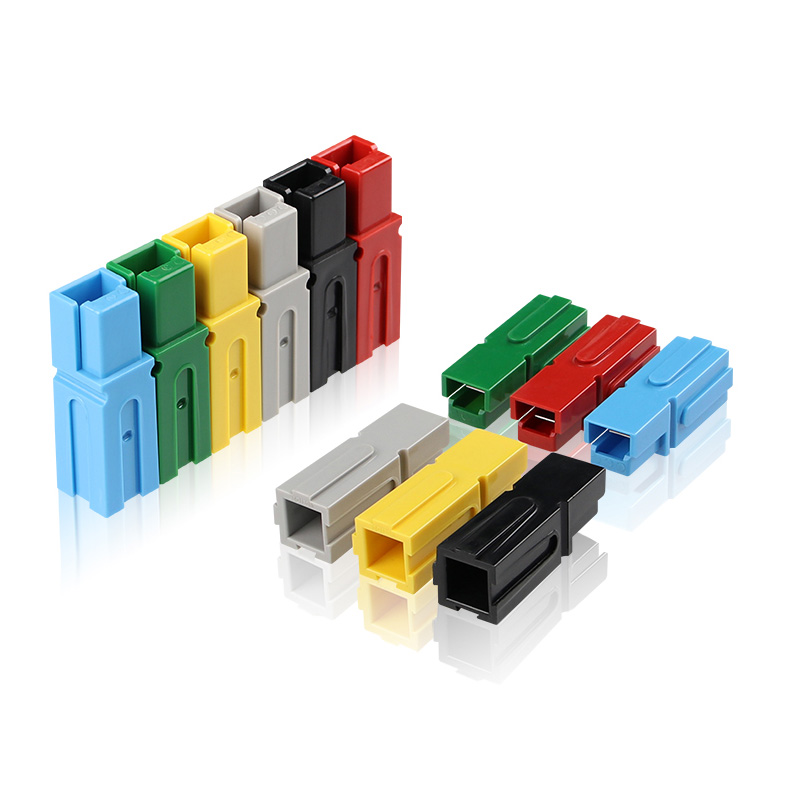

1. **Multiple Color Options:** The plug is available in six different colors, making it easy to color-code and identify connections.

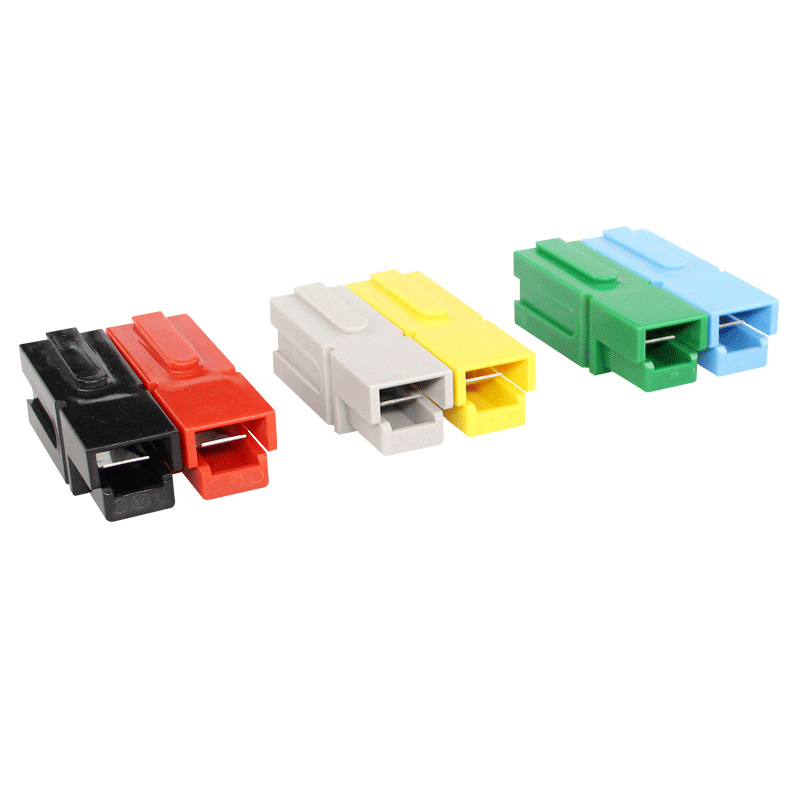

2. **Color-Coordinated Pairing:** The same-color mating system ensures foolproof connections, reducing the risk of errors during installations.



3. **Locking Groove Design:** The plug incorporates a secure locking groove design, providing a reliable and stable connection in demanding environments.



4. **Modular Connectivity:** It's possible to assemble multiple connectors to create a multi-pole connection, adapting to your specific power distribution needs.



5. **High-Quality Conductivity:** The connector features silver-plated copper terminals, ensuring optimal electrical conductivity and long-term reliability.

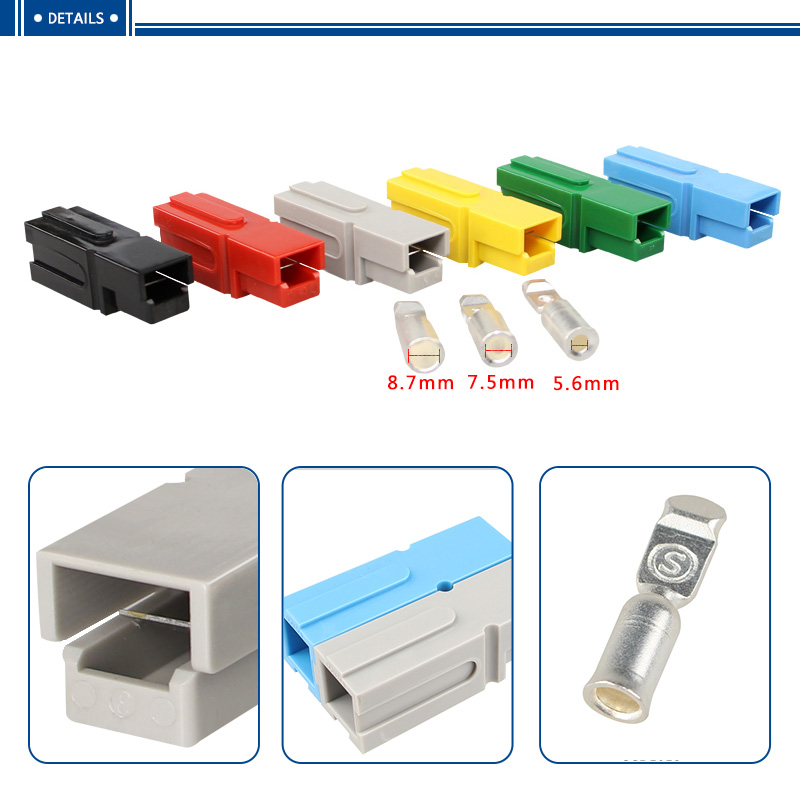

6. **Versatile Wiring Options:** With three different wire hole sizes, this connector accommodates a wide range of wire gauges, enhancing its compatibility.



Parameter:

Product Name 120A Gray High frequency module power quick plug
Rated current(Amperes)  120A
Rated voltage(Volts) 600V
Shell color Gray
Insulation Resistance 5000MΩ
Flammability UL94 V-0
(AWG) Contact Barrel Wire Size(AWG) 2~6AWG
Process of production Precision punching
Environment temperature -20℃---125℃
Material of terminal  Red copper



Detailed introduction :



At Guang Dong SED, we are pioneers in pushing boundaries, offering an expansive selection of connector accessories that seamlessly complement our exceptional OEM wire harness customization services. Our dedication remains steadfast – we deliver comprehensive connector and wire harness solutions to meet a wide spectrum of needs.



Guided by the principles of innovation, quality, and an unwavering commitment to customer satisfaction, we aspire to transcend the role of a mere supplier. Our goal is to become your trusted partner across diverse industries. Equipped with a cutting-edge manufacturing facility and an exceptionally skilled team, we are primed to create reliable and high-performance connectors and wire harnesses that not only meet but surpass the most rigorous requirements.





FQA:

1.Are you the manufacturer?

Yes, we are a manufacturer, brand SED, with the strength of connector and harness one-stop service.

2.What’s your MOQ?

There is no limit on the quantity of purchase, and the order is shipped

3.Is customization supported?

Support LOGO customization, support color customization, support connector open mold injection molding customization, support OEM wiring harness customization.

4.What is the delivery time?

Do not specify the time, order delivery, according to the customer's specified time delivery

5.How to place an order or know more about the products?

Contact sales staff online or by email
