When it comes to charging your electric vehicle or powering critical equipment, you need a reliable connector that can handle the job. Look no further than the SED Connector 120A, designed for a multitude of applications and built to perform under demanding conditions.
**Specifications:**
- **Current Rating:** 80A / 120A
- **Voltage Rating:** 600V
- **Pole Configuration:** Single Pole (1P) / Single Pole with (1P+PE)
- **Certifications:** CE, UL, CUL, ROHS, IATF16949, REACH
Item No :
SDOrder(MOQ) :
1Payment :
TTProduct Origin :
DongguanColor :
BlueShipping Port :
ShenzhenLead Time :
Delivery time according to customer requirements120A Blue Golf electric car charging connector plug
- **High Quality Build:** Designed to meet the highest industry standards.

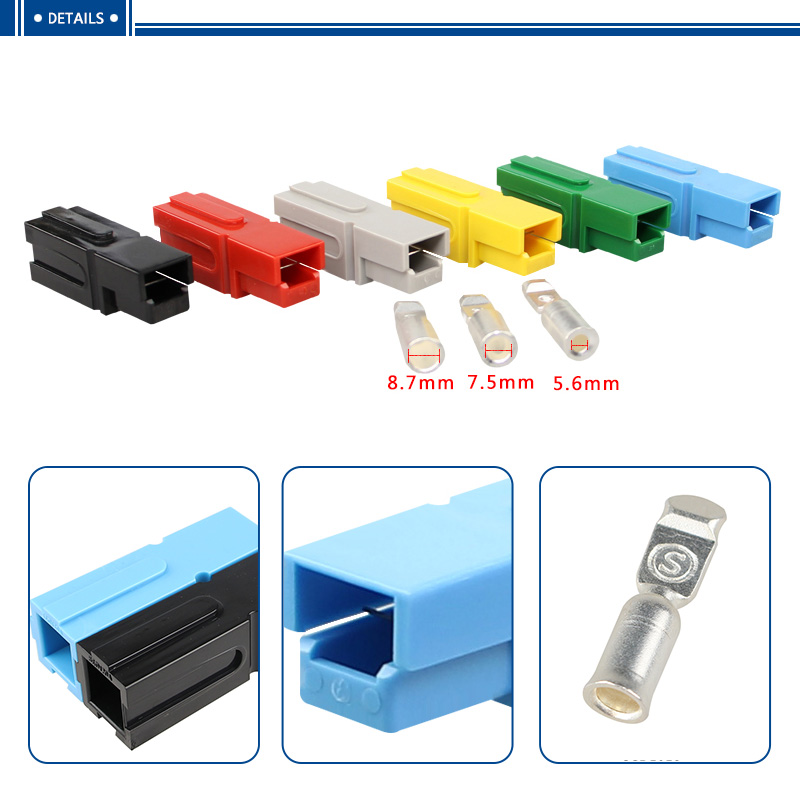

- **Color Options:** Choose from six different shell colors to match your preferences.
- **Secure Connection:** Same-color mating for easy and secure connections.
- **Latch Groove Design:** Ensures a secure fit and minimizes accidental disconnections.

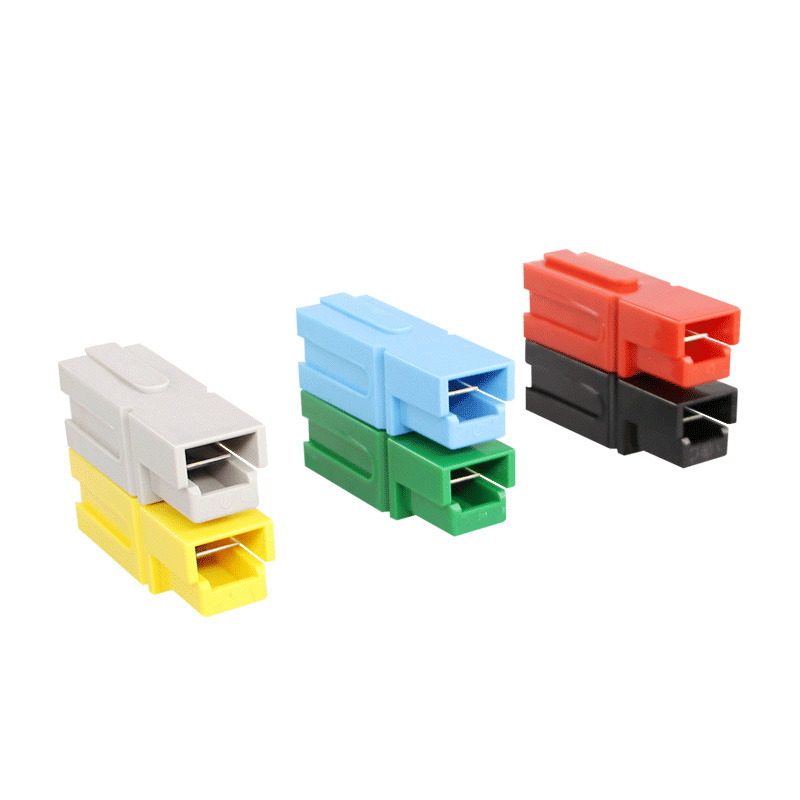

- **Modular Design:** Connect multiple connectors to create multi-pole configurations.
- **Conductive Materials:** Utilizes silver-plated copper terminals for excellent conductivity.
- **Multiple Wire Sizes:** Accommodates various wire sizes with three different wire hole diameters.
The SED Connector 120A is your go-to choice for reliable, high-current connections. Whether you're charging your electric vehicle, powering critical equipment, or ensuring backup power during emergencies, trust in the quality and versatility of this connector. It's engineered for performance, durability, and safety, holding certifications that attest to its excellence.
Parameter:
| Product Name | 120A Blue Power Connector Battery Plug |
| Rated current(Amperes) | 120A |
| Rated voltage(Volts) | 600V |
| Shell color | Blue |
| Insulation Resistance | 5000MΩ |
| Flammability | UL94 V-0 |
| (AWG) Contact Barrel Wire Size(AWG) | 2~6AWG |
| Process of production | Precision punching |
| Environment temperature | -20℃---125℃ |
| Material of terminal | Red copper |
Detailed introduction ：
At Guang Dong SED, we are pioneers in pushing boundaries, offering an expansive selection of connector accessories that seamlessly complement our exceptional OEM wire harness customization services. Our dedication remains steadfast – we deliver comprehensive connector and wire harness solutions to meet a wide spectrum of needs.
Guided by the principles of innovation, quality, and an unwavering commitment to customer satisfaction, we aspire to transcend the role of a mere supplier. Our goal is to become your trusted partner across diverse industries. Equipped with a cutting-edge manufacturing facility and an exceptionally skilled team, we are primed to create reliable and high-performance connectors and wire harnesses that not only meet but surpass the most rigorous requirements.
FQA：
1.Are you the manufacturer?
Yes, we are a manufacturer, brand SED, with the strength of connector and harness one-stop service.
2.What’s your MOQ?
There is no limit on the quantity of purchase, and the order is shipped
3.Is customization supported?
Support LOGO customization, support color customization, support connector open mold injection molding customization, support OEM wiring harness customization.
4.What is the delivery time?
Do not specify the time, order delivery, according to the customer's specified time delivery
5.How to place an order or know more about the products?
Contact sales staff online or by email
